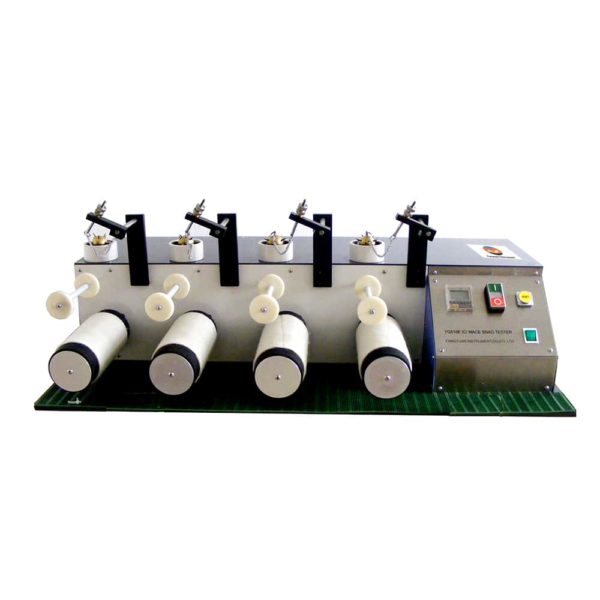

Snagging Resistance Tester YG518E
Snagging resistance tester, also named ICI Mace Snagging Tester, snagging tester. FYI is one of the best Snagging Resistance Tester manufacturers of in the world, we offer good quality products with affordable price.
Snagging Resistance Tester YG518E
FYI- best Snagging Resistance Tester manufacturer and supplier of china, we offer high quality ICI mace snagging tester and devoting to offering cost effective testing solutions and equipments for various industrial applications.
Follows are features of mace snagging tester
- Rotating cycle number can be pre-settable and duly displayed on the LED panel.
- Stop automatically after getting the preset rotating cycle.
- Length of chain is adjustable.
For more information,you can also visit www.fyichina.com.cn.
Application
Application of Snagging Resistance Tester
Snagging Resitance Tester is used to determine the tendency of fabrics to snag, (pull yarn loops from fabric) in normal wear. And suitable for woven and knitted fabrics made by textured yarn, non-textured yarn, and spun yarn, etc., not suitable for the mesh fabrics, tufted fabric, and non-woven fabrics, etc.4 pcs Felt Sleeve use special material. Length of chain can be adjustable. Rotating cycle number can be pre-settable and digitally displayed,Please buy YG908E Pilling Assessment Box together to use it
ICI Mace Snagging Resitance Tester complies with ASTM D3939, JIS L1058 etc international and retailer standards.
If you need more information about Snagging Resitance Tester Machine. Please contact with us
Standards
Standards of Snagging Resistance Tester
| ASTM D3939 | JIS L1058 |
|---|
Some standards might not be the full version; to read the full version for free, write an email to [email protected].
Please contact the administrator to get any violations removed.
Key specification
Key Specification of Snagging Resistance Tester
| Working position | 4 |
|---|---|
| Speed | 60rpm±2rpm |
| Testing Cylinder | Φ82mm width 210mm |
| Mace ball | weight 160±10g, 11 maces |
| Mace | length 10mm, diameter of tip Φ0.13mm |
| Chain | working width 125mm, Φ10mm |
| Counter | 0~9999 |
| Power supply | 220V 50Hz 60W |
| Dimension | 897×497×450mm (L×W×H) |
| Weight | 50kg |
