Hydrostatic Pressure Tester YG812S

Rated 0 out of 5
(be the first to review)

Digital Hydrostatic Tester which also named hydrostatic pressure tester, hydrostatic head tester or hydrostatic pressure meter.  FYI- best hydrostatic testing equipment manufacturer of china, And offering high quality machines ,but with affordable price.

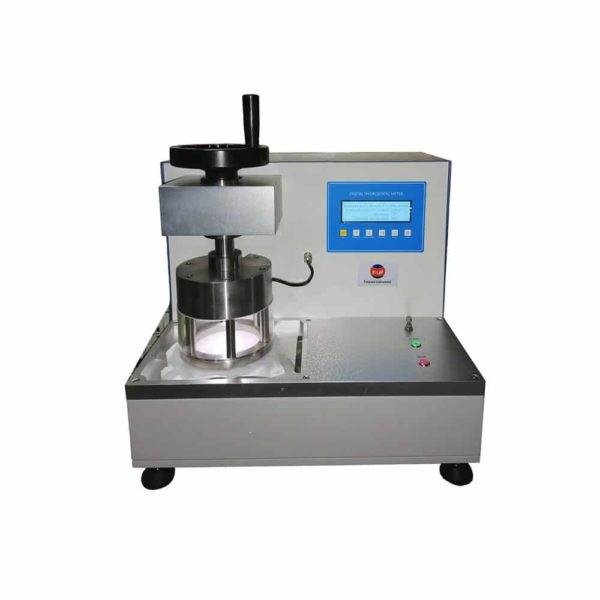

Digital hydrostatic pressure tester YG812S

YG812C Hydrostatic Head Tester is applied to determine the resistance of fabrics (such as canvas, tarpaulin, manta, tent cloth, rain-proof garments) to water penetration. The hydrostatic pressure increasing at a constant rate is applied from below the test specimen, whilst firmly clamped in the test head of 100cm2 area, until penetration occurs in three places. Record the pressure at the moment water first appears at the third place in the specimen.

FYI- best Digital Hydrostatic Tester manufacturer and supplier of china, we offer high quality hydrostatic head tester devoting to offering cost effective testing solutions and equipments for various industrial applications.

This machine complies with these standards:ISO 811, AATCC127, GB/T 4744 ,JIS L1092.

Follows are features of hydrostatic pressure tester

  • Made of stainless steel, durable in use;
  • Waterproof industrial grade color touch screen display and control, friendly man-machine interface, easy to operate;
  • Use industrial grade pressure sensor to get stable test result with high repeatability;
  • Pressure applied on specimen pass through a buffer device to effectively avoid over-pressured.
  • Clear safety shield and LED light in specimen clamp allows operators to monitor tests in progress;
  • Built-in storage and printing functions.

Application

Application of Digital Hydrostatic Tester

Digital Hydrostatic Tester is used to determine the resistance of fabrics (such as canvas, tarpaulin, manta, tent cloth, rain-proof garments) to water penetration under hydrostatic pressure whilst firmly clamped in the test rig of 100cm2 area.

Hydrostatic pressure with range from 0 to 200kPa;Pressure applied on specimen pass through a buffer device to effectively avoid over-pressured; There is a calibration port in control box . If need to calibration the machine ,Firstly open the back cover of contraol box and pull out the plug .

If you need more information about fabric hydrostatic meter. Please contact with us

Standards

Standards of Digital Hydrostatic Tester

AATCC127 ISO 811 GB/T 4744 JIS L1092

Some standards might not be the full version; to read the full version for free, write an email to [email protected].
Please contact the administrator to get any violations removed.

Key specification

Key Specification of Hydrostatic Head Tester

Display mode Touch screen display
Measurement range 0 ~ 200kPa
Pressure accuracy ±1% F.S.
Resolution 0.01kPa
Effective area of test head 100cm2
Loading rate 1kPa/min, 6kPa/min, 10kPa/min, 100kPa/min
Power supply AC220V, 50Hz
Unit kPa, mmHg, mbar
Printer Mini thermal printer
Illumination LED light
Dimensions (L×W×H) 540×480×520mm
Net weight 88kg
