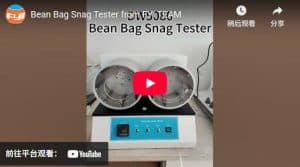

Bean Bag Snag Tester DW5080

Rated 0 out of 5
(be the first to review)

FYI is one of the best Bean Bag Snag Tester suppliers in the world, we offer good quality products with affordable price. The Bean Bag Snag Tester is of independent R&D, we provide not only good quality products, but also best after sales service.

Bean Bag Snag Tester DW5080 Descriptipn

DW5080 Bean Bag Snag Tester is used to determine the snagging resistance of woven and knitted fabrics by tumbling fabric pillows containing a weighted bean bag within two separate test cylinders provided with eight pinned bars, rotating at 20 rpm for 100 revolutions.

FYI is a leading supplier and export of Bean Bag Snag Tester which supply best solution for fabric testing .

This machine complies with the following standards:ASTM D5362, JIS L1058.

All of testing instruments manufactured by FYI are well-known throughout China and more than 50 countries abroad for providing superior value and performance.

Follows are features of bean bag snag testing machine:

  • With transparent security cover to protect operator and observe testing process;
  • Rotating cylinders are made from rustproof material for long time use;
  • Equipped with predetermined LED display counter;
  • Automatically stopped by the counter after reaching predetermined revolution.

Application

Application of Bean Bag Snag Tester

Bean Bag Snage Tester is used to determine the snagging and picking characteristics of knitted fabrics by tumbling fabrics pillows containing a weighted bean bag within two separate test cylinders provided with eight pinned bars, rotating at 20RPM for 100 rev. provided with predetermined electronic counters.

It equipped with transparent plexiglass security cover, protect the operator and easy to observe testing process; Automatically stopped by the counter after predetermined revolution reach.



Bean Bag Snage Tester complies with ASTM D5362, JIS L1058, etc international and retailer standards.

If you need more information about Precision Tumble Dryer Machine. Please contact with us.

Standards

Standards of Bean Bag Snag Tester

ASTM D5362 JIS L1058



Some standards might not be the full version; to read the full version for free, write an email to [email protected].
Please contact the administrator to get any violations removed.

Key specification

Key specification of Bean Bag Snag Tester

Cylinder qty 2
Cylinder size Ф200×145mm
Rotating speed of cylinder 20±3r/min
Baffle bar qty 8pcs for each cylinder
Baffle bar size Ф8×127mm with 9 pins on it
Pin specification length 10mm, spacing 12mm, angle 30±5°
Bean bag weight 450±10g
Specimen template size 215×115mm
Power supply AC220V, 50Hz
Dimension 470×400×400mm (L×W×H)
Net weight 55kg
