Air-jet Spinning Machine DW7090R

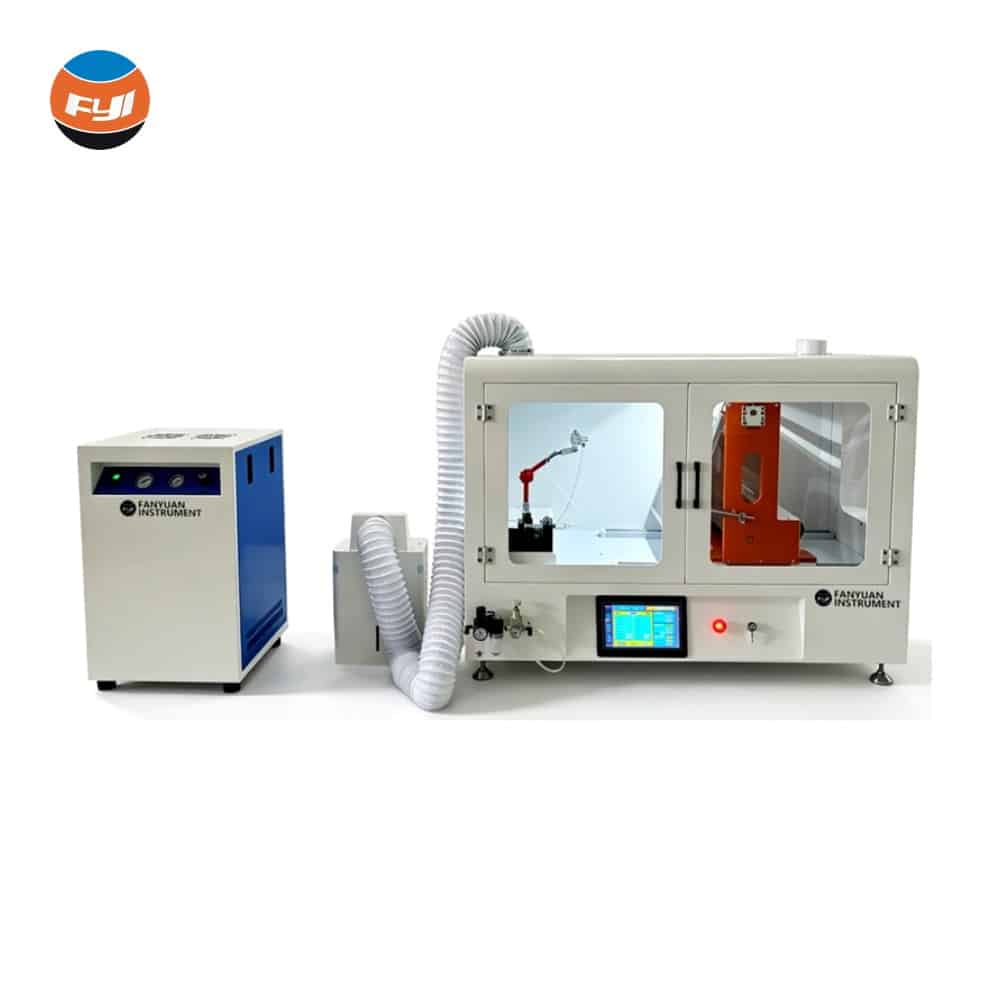

The DW7090R air-jet spinning machine is a laboratory-scale equipment used for nanofiber manufacturing. It uses high-speed airflow as a driving factor to create ultrafine fibers. The machine has exceptional performance, stability, high safety, and a simple, user-friendly working process.
Air-jet Spinning Machine DW7090R
DW7090R Air-jet spinning machine is a laboratory-scale device designed for nanofiber fabrication. It utilizes high-speed airflow as the driving force to produce ultrafine fibers. The machine features excellent performance, stable operation, high safety, and a straightforward, user-friendly operating procedure.
You also can read our melt spinning machine for pitch DW7090A
FEATURES:
- External ultra-quiet air compressor providing compressed gas for the spinning process;
- Two independently controlled high-precision single-channel syringe pump systems, each pump corresponding to two channels and capable of operating simultaneously, compatible with syringes of various sizes (1, 3, 5, 10, 20 mL);
- Heating and dehumidifying units to ensure stable environmental control;
- 10‑inch HMI (Human‑Machine Interface) CNC control system, which governs the operation of various components (including the nozzle traversing mechanism, liquid supply system, heating, humidity control, exhaust gas control, timed experimental control, lighting, etc.) and monitors the status of each part;
- Safety protection systems including leakage protection and waste gas exhaust.
Application
Application of Air-jet Spinning Machine
DW7090R Air-jet spinning machine is a laboratory-scale device designed for nanofiber fabrication. It utilizes high-speed airflow as the driving force to produce ultrafine fibers. The machine features excellent performance, stable operation, high safety, and a straightforward, user-friendly operating procedure.
AIR-JET SPINNING PROCESS
SPINNING PROCESS:
- The syringe pump is connected to the air-jet spinning nozzle through a delivery tube.
- The polymer solution is driven by the syringe pump and extruded from the small central hole of the air-jet spinning nozzle.
- Compressed air passes through the outer channel of the air-jet spinning nozzle and is discharged at high speed around the central solution outlet.
- The high-velocity airflow creates shear and stretching effects at the air-jet spinning nozzle exit, causing the polymer solution jet to thin progressively.
- The resulting nanofibers are entrained in the airflow and deposited onto the collector, where they form a nanofiber mat.
Key specification
Key specification of Air-jet Spinning Machine
| High-Precision Syringe Pump | Number of independently controlled groups: 2 Number of channels: 4 Syringe capacity range: 1 ~ 30 mL Minimum flow rate: ≥0.001 mL/min Maximum flow rate: 127 mL/hr (with a 10 mL syringe) Linear thrust: 15 kgf Minimum advance distance: 0.529 μm (1/2 step) Minimum step interval: 1/30 sec (1/2 step) Accuracy: ±<1% |
| Air-Jet Spinning Nozzle | Pressure resistance: 10 MPa Coaxiality: <0.1 mm (adjustable) Detachable design: Allows easy replacement of inner needles of different gauges. Air outlets: Four interchangeable air outlets with inner diameters of 1.5, 2, 3, and 4 mm. Compatible coaxial needle gauges: 15G – 30G |
| Traverse Mechanism | Stroke range: 0–200 mm Traverse speed: 0–40 cm/min Traverse time and number of cycles: both adjustable and controllable (programmable) |
| Environmental Control | Ventilation air flow rate: 100 L/min Humidity control: adjustable from 30% RH to ambient (room) humidity Temperature control: adjustable from ambient (room) temperature to 70 °C |
| Collectors | Flat plate collector: Made of stainless steel; dimensions: 400 mm × 400 mm; thickness: 1.2 mm; regularly perforated with 5 mm diameter holes. Web/mesh collector: Made of corrosion-resistant Teflon (PTFE); movable base for adjusting the spinning distance; maximum sample collection size: 400 mm × 900 mm; rotational speed adjustable from 0 to 100 rpm. |
