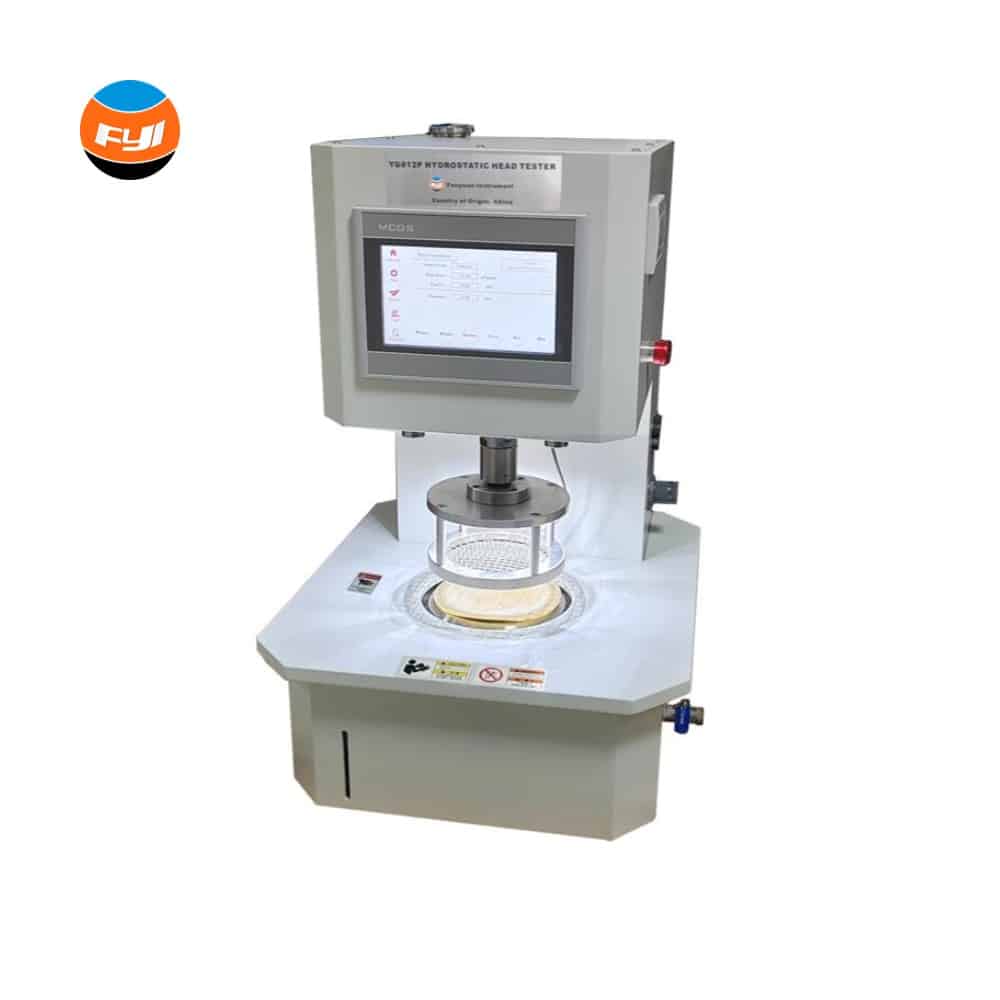

Hydrostatic Head Tester YG812P

Hydrostatic Head Tester YG812P

YG812P Hydrostatic Head Tester is applied to determine the resistance of fabrics (such as canvas, tarpaulin, manta, tent cloth, rain-proof garments) to water penetration. The hydrostatic pressure increasing at a constant rate is applied from below the test specimen, whilst firmly clamped in the test head of 100cm² area, until penetration occurs in three places. Record the pressure at the moment water first appears at the third place in the specimen.

This machine complies with these standards:ISO 811,1420, AATCC127, GB/T 4744 ,JIS L1092,FZT 01004,EN 20811, 1734.

Follows are features of hydrostatic pressure tester

• Color touch screen display and control, friendly man-machine interface, easy to operate;
• Use industrial grade pressure sensor to get stable test result with high repeatability;
• Pressure applied on specimen pass through a buffer device to effectively avoid over-pressured.
• LED light in specimen clamp allows operators to monitor tests in progress;
• Built-in storage and printing functions.
