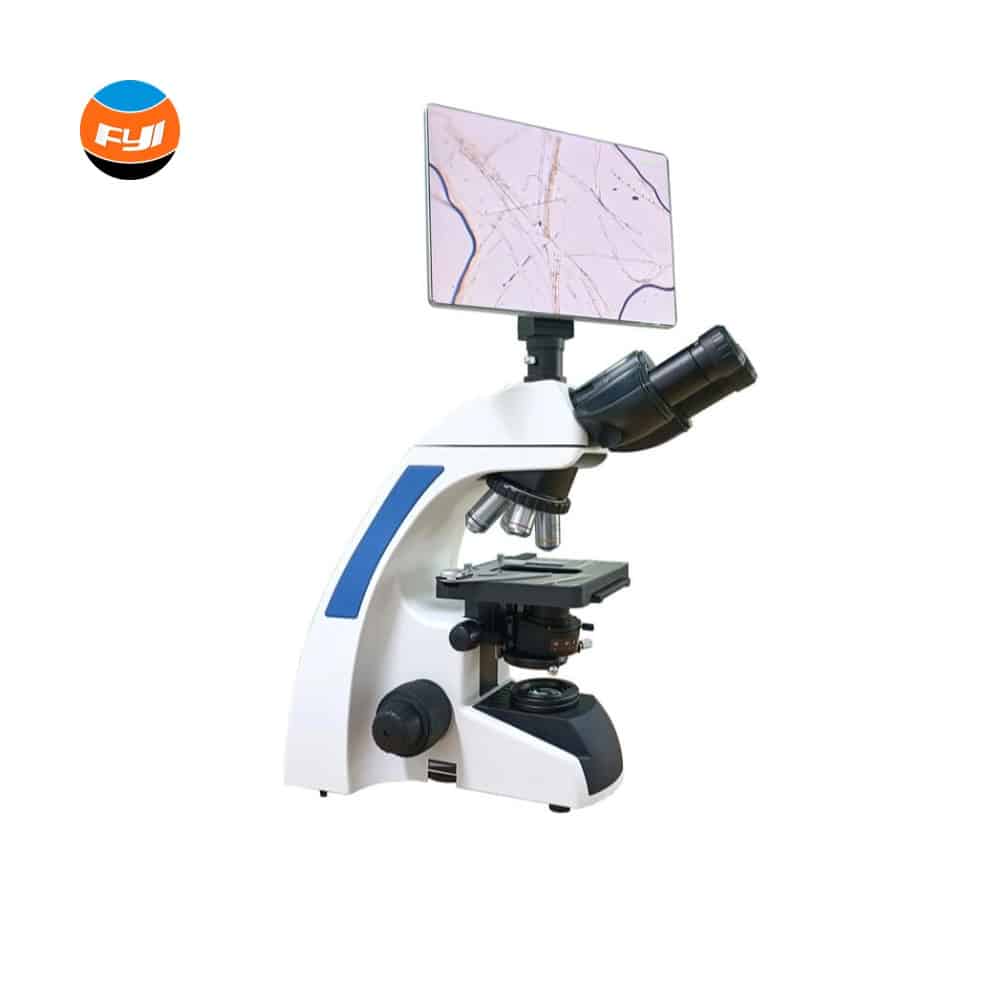

Digital Biological Microscope YG002A
Widely utilized in biology, medicine, industry, agriculture, and other industries, the YG002A Digital Biological Microscope is a perfect tool for scientific study, teaching, and medical treatment. You can view, capture, measure, and analyze anything on the top-quality optical microscope with the help of the 10.5″ touch screen Android pad and the built-in measurement software.
Digital Biological Microscope YG002A
YG002A Digital Biological Microscope is widely used in biology, medicine, industry, agriculture and other fields, and are ideal instruments for medical treatment, teaching, scientific research and other fields. With 10.5″ touch screen android pad and pre-installed measure software, you can do all of the watch, capture, measure & analysis work on the high quality optical microscope.
Application
Application of Digital Biological Microscope
Widely utilized in biology, medicine, industry, agriculture, and other industries, the YG002A Digital Biological Microscope is a perfect tool for scientific study, teaching, and medical treatment. You can view, capture, measure, and analyze anything on the top-quality optical microscope with the help of the 10.5″ touch screen Android pad and the built-in measurement software.
Standards
Standards of Digital Biological Microscope
Some standards might not be the full version; to read the full version for free, write an email to [email protected].
Please contact the administrator to get any violations removed.
Key specification
Key Specification of Digital Biological Microscope
| Microscope | |
| Head | Trinocular head, 30° inclined, interpupillary distance 48-75mm, both eyepiece tube diopter adjustable |
| Eyepiece | WF10x/20mm, diopter adjustable, dia. 30mm |
| Objective | High contrast chromatic free 4x, 10x, 40x(S), 100x(Oil, S) |
| Focus knob | Coaxial coarse & fine focusing, fine division 0.002mm, coarse stroke 37.7mm/rotation, focusing range 24mm |
| Nosepiece | Quadruple, backward with click stops |
| Stage | Double layer mechanical stage 142*132mm,
graphite surface, moving range 75*50mm |
| Abbe condenser | N.A.1.25, center adjustable |
| Light source | 3W LED, brightness adjustable |
| 10.5″ Touch Screen Android Pad Digital Camera, 8.0M | |
| Sensor | 1/1.8″ CMOS sensor |
| Resolution | 8M, 4K, 3840*2158@30FPS |
| Pixel size | 2.0μm*2. 0μm |
| Screen | 10.5″ High-definition touch screen |
| Memory | Built-in RAM 2G, ROM 16G |
| System | Android 11 tablet, pre-installed measure software |
| WIFI | 2.4GHz/5GHz dual-band WIFI, support WIFI6 |
| Bluetooth | Bluetooth 5.0 |
| Output | USB2.0, HDMI, USB3.0*2, LAN Port |
| Power supply | Output DC 12V/2A, Input 110~220V wide range |
