Electronic Tensile Strength Tester YG021PT
Electronic Tensile Strength Tester, also named Tensile Strength Tester,fabric strength tester of strength testing machine. Electronic strength tester is used to determine the mechanical property of woven fabric, non-woven fabric, knitted fabric, inluding tensile, tearing, seam slippage, elastic recovery, etc.
Electronic Tensile Strength Tester YG021PT

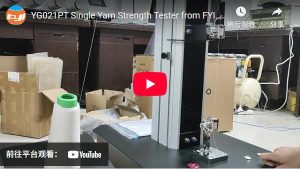

YG021PT Electronic Single Yarn Strength Tester is used to determine the breaking strength and elongation at break of single yarn of cotton, wool, hemp and covering yarn.
Follows are features of fabric tensile strength tester :
- The software is divided into two modules according to functions, with intuitive interface and simple operation.
- Common standard test methods are built-in the software, the customer can select or customize it.
- Real-timely display the dynamic data curve.
- Friendly software design, the software is equipped with inquire, print, export, real-time curve display and other function.
- Support different units.
- Flexible operation, the operator can select the exported report and data.
- Adopt imported components with fast reaction speed, high control accuracy, providing unparalleled stability and accuracy.
- High cost performance, compared with different world famous brand strength testers, the error range is always within ±3%.
- The clamp has two options, manual clamp or pneumatic clamp.
Application
Application of Electronic Tensile Strength Tester
YG021PT Electronic Strength Tester is used to determine the mechanical property of light woven fabric, light knitted fabric, non-woven fabric, including tensile, tearing, seam slippage, elastic recovery, etc.
If you need more information about Electronic Tensile Strength Tester Please contact with us.
Standards
Electronic Tensile Strength Tester standards
| STANDARDS | ISO 2062 | ASTM D2256 | GB/T 3916 |
Some standards might not be the full version; to read the full version for free, write an email to [email protected].
Please contact the administrator to get any violations removed.
Key specification
Key specification of Electronic Tensile Strength Tester
| Load cell capacity | 10kg/20kg (Please advise when order) |
| Load range | 0.1%~100%FS |
| Accuracy | ±0.5%FS |
| Speed | 20~1,000mm/min |
| Extension measuring range | 0~300mm(when gauge length is 500mm) |
| Displacement accuracy | 0.01mm |
| Communication Interface | Ethernet |
| Motor | Servo motor |
| Drive | Famous brand |
| Power supply | AC220V, 50Hz |
| Dimensions | 620*450*1,300mm (L*W*H) |
| Net weight | 55kg |
