laboratory carding machine DW7010H

Rated 0 out of 5
(be the first to review)

Laboratory Carding Machine, also named miniature carding machine or Mini Carding machine which is the step that comes after Lab Opener in preparing cotton fiber for mill spinning.Carding machine for small community mills and textile laboratories. Our carding machine to process fibers like sheep wool, alpaca etc.. Feed cotton fiber to make carding and remove the impurities, then output cotton sliver.laboratory carding machine has cotton carding machine and small wool carding machine .FYI supply best miniature carding machine machine for sale.

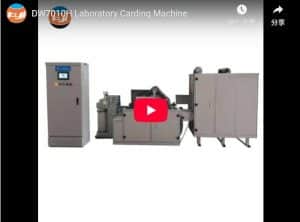

Laboratory Carding Machine DW7010H

FYI are mini carding machine manufacturers which provide high quality Laboratory Carding machine  with reasonable price. Spare parts are all in readiness to avoid long delivery time when ordering.

Mini carding machine is used to comb loose fiber cleaned and opened through the previous opener to produce sliver in lab. It mainly consists of cotton feeding, carding, stripping& coiling and bottom material collecting devices. The main function of the cotton feeding and the licker-in section is to feed the cotton layer into the machine, hold the cotton layer, and remove impurities and short fibers. The fibers that had been preliminarily combed by the licker-in roll are further carefully combed between the cover plates and cylinder to remove some finer impurities and short fibers. Doffer condenses the combed fibers into a fiber layer. Uniform and mix effects are achieved during the carding and coagulation process. The function of the stripping device is to strip the fiber layer condensed on the surface of the doffer to make the cotton web. The function of the coiling device is to take the sliver output from the stripping rollers, pull it through small pressure rollers, press it tightly, and then pass through the coiler to the can.

Follows are features of laboratory carding machine:

  • It mainly consists of chute feeder, carding machine and coiler, of which the chute feeder makes the feeding even;
  • Delta brand PLC + touch screen control, easy to learn and operate;
  • Use removable cover plates;
  • Use standard can coiler to output cotton sliver;
  • High mechanical-electrical integration degree, stable and reliable;
  • Use touch screen as man-machine interface, input technical parameters and show machine running state by touch screen;
  • Integrated electrical control, easy to maintain.


Application of laboratory carding machine

DW7010H Lab Carding Machine is used to feed cotton fiber to make carding and remove the impurities, then output cotton sliver. It’s the ideal system for teaching, researching, etc.

If you need more information about carding machine process, carding machine spare parts and cotton carding machine price please contact us.



Standards of laboratory carding machine

Key specification

Key specification of laboratory carding machine

 Control mode Touch screen & Delta brand PLC
 Applicable fiber length 22~50mm
Working width 480mm
Feed quantity 4~6kg/h
Feed roller diameter Φ250mm
Feed roller speed 750rpm
Cylinder diameter Φ446mm
Cylinder speed 750rpm
Cover plate qty (Working/Total) 20/41
Doffer diameter Φ258mm
Doffer speed 13rpm
Can diameter Φ250mm
Power supply AC220V, 50Hz
Dimensions (L*W*H) Carding machine: 1,470*930*1,410mm

Feeding box: 1,700*800*1,900mm

Coiler: 930*560*1,200mm

Net weight Carding machine: 900kg

Feeding box: 630kg

Coiler: 95kg
