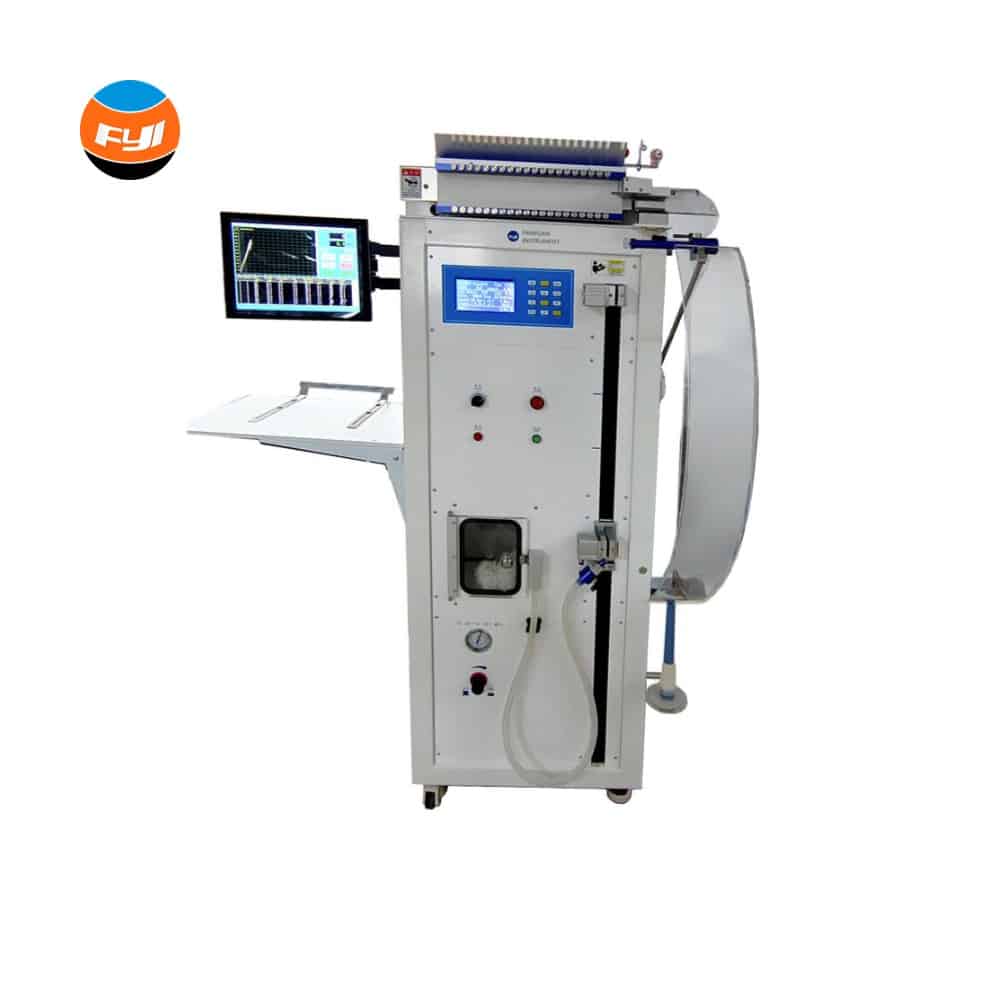

Single Yarn Strength Tester YG029B

Rated 0 out of 5
(be the first to review)

Single Yarn Strength Tester, also named Single End Yarn Strength Tester, Automatic Yarn Strength Tester or Yarn Tensile Strength Tester. FYI is one of the best yarn strength tester manufacturers in the world, we offer good quality products with affordable price.

Single Yarn Strength Tester YG029B

FYI- best  Single Yarn Strength Tester manufacturer and supplier of china, we offer high quality single yarn strength tester and devoting to offering cost effective testing solutions and equipments for various industrial applications.

Follows are features of yarn tensile strength tester

  • full automatic testing procedure without jamming;
  • no need to preheat, can test the sample when the boot;
  • Widely testing range, it can test cotton yarn, wool yarn, yarn of ramie, chemical fiber yarn, spandex Core-spun yarn, slashing, raw yarn and so on;
  • It adopts menu operation which is clear and easy to learn and use;
  • 20 sets of data can be stored so it can be review and print easily;
  • 320×240 Light blue LCD display. It can display the curve of Strength elongation (F-E), straight-line graph of strength, straight-line graph of elongation and scatterplots;
  • This automatic yarn strength tester with power-down protection;
  • Self-check function and display the fault location;




Application of Automatic Single End Yarn Strength Tester

Automatic Single End Yarn Strength Tester is used to determine the breaking load and extension of single yarns.Automatically operated with neumatic/magnetic clamp. It is the test generation of products according to the demand of the standard ISO2063-93. It has a higher stability, accuracy, reliability, enhanced intelligence, integration and so on. It can test cotton yarn, wool yarn, yarn of ramie, chemical fiber yarn, spandex Core-spun yarn, slashing, raw yarn and so on; It also have Power-down protection and Self-check function and display the fault location.

Single End Yarn Strength Tester complies with ISO 2062, ASTM D2256 etc international and retailer standards.

If you need more information about Yarn Strength Tester. Please contact with us


Standards of Automatic Single End Yarn Strength Tester

ASTM D2256 ISO 2062

Key specification

Key Specification of Automatic Single End Yarn Strength Tester

measurement range: 0~3000cN
Resolution of the force 0.1cN
Max error ±1% indicating value
Speed 15~2000mm(YG029B-2000) adjustable
15~5000mm(YG029B-5000) adjustable
Error of speed less than ±2%
Spacing of the upper and lower gripper 500±1mm
Max elongation 250mm
Error of elongation less than 0.5mm
Pre-tension 0~100cN
Number of the yarn once load 1~20 tube
Power 220v 50Hz
Dimension 700×550×900mm(L×W×H)
