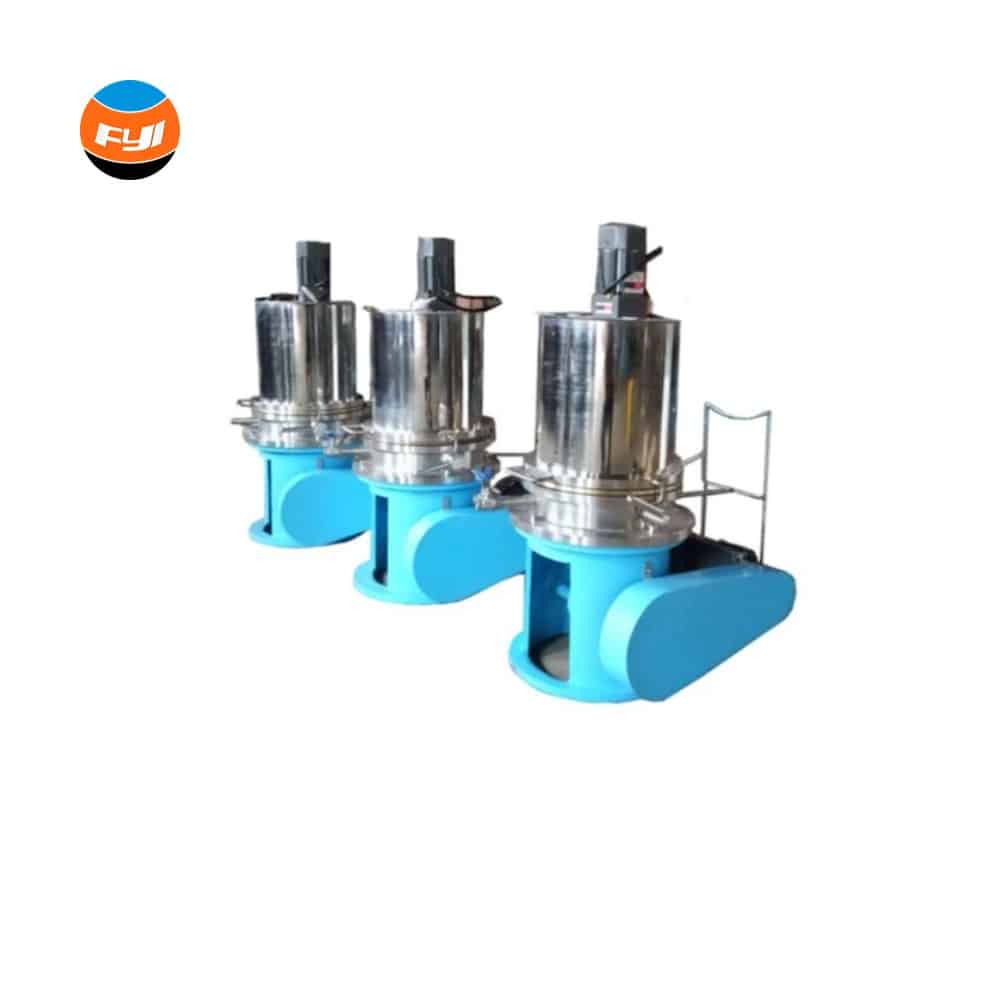

Fiber Screening Unit PAP-40
The pulp fibers that satisfy the criteria are removed from the sieve gaps by the PAP-40 Fiber Screening Unit using vibration vacuum suction, while the wood residue and fibers that do not meet the requirements are left on the sieve plate and subsequently removed from the slag discharge holes.
Fiber Screening Unit PAP-40
PAP-40 Fiber Screening Unit uses vibration vacuum suction to extract pulp fibers that meet the specifications from the sieve gaps, leaving fibers and wood residue that do not meet the requirements on the sieve plate, and then removing them from the slag discharge holes.
Here are the features of the machines:
- The equipment has a fast mixing speed and evenly disperses the slurry;
- High vibration frequency, high screening efficiency;
- The equipment has the characteristics of small footprint and can be moved freely.
APPLICATION
Application of Fiber Screening Unit
The pulp fibers that satisfy the criteria are removed from the sieve gaps by the PAP-40 Fiber Screening Unit using vibration vacuum suction, while the wood residue and fibers that do not meet the requirements are left on the sieve plate and subsequently removed from the slag discharge holes.
If you need more information about the machine, please contact with us.
Key specification
Key Specifications of Fiber Screening Unit
| Vibration frequency | 1400 times/minute |
|---|---|
| Specification of sieve plate seam | 0.2mm,0.25mm,0.3mm,0.4mm |
| Diameter and height of slurry cylinder | 300mm × 300mm |
| Blender speed | 250rpm |
