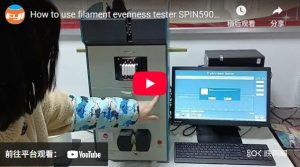

Filament Evenness Tester SPIN5900

5.0 (1 review)

Filament Evenness Tester, also named Filament Yarn Evenness Tester. FYI is one of the leading manufacturers and suppliers of filament evenness tester in the world, and devoting to offering cost effective testing solutions and equipments for various industrial applications.

Filament Evenness Tester SPIN5900

SPIN5900 Filament Evenness Tester is an essential instrument for controlling filament quality. It adopts capacitive detection to test the evenness of various filaments, can quickly measure and analyze linear density (mass) variations, realize high efficiency and accuracy as well as excellent stability and consistency.

Features of the evenness tester:

  • There are four testing slots in the measuring head of the main machine. The testing slot can be chosen automatically after users input the yarn count, improving test efficiency and reducing error.
  • Automatic zero adjustment realizes one-key operation to complete test, making the operation more convenient and efficient.
  • The test speed can be as max. as 800m/min.
  • Mechanical twisting system guarantees the filament passing the slot steadily. The direction and speed of twisting can be set according to the filament variety, easy for controlling twist.
  • Unique anti-winding device can prevent filament winding the roller.
  • It adopts advanced digital processing technology, computer hardware & software technology and automatic controlling technology, to provide users accurate numerical results including the authoritative coefficient of variation CV%, U% and also graphical presentations with curves, diagrams and spectrograms.
  • Accurate spectrogram, coefficient of variation-length (CV-L) curve and linear density-frequency diagram can be provided.
  • Unevenness curve can be saved and playback.
  • Powerful statistical and analysis function can provide users annual and monthly product quality graphics and trend, which is the basis of scientific management.

For more information,you can also visit www.fyichina.com.cn.

Application

Application of Filament Evenness Tester

Filament Evenness Tester is used to determine Filament evenness ,Automatic zero adjustment realizes one-key operation to complete test, making the operation more convenient and efficient. It adopts four capacitance testing slots to improve the test accuracy.

It adopts advanced digital processing technology, computer hardware & software technology and automatic controlling technology, to provide users accurate numerical results including the authoritative coefficient of variation CVm%, U% and also graphical presentations with curves, diagrams and spectrograms. Please prepare air Pump in your lab when you use this machine .

If you need more information about Filament Evenness Tester Machine. Please contact with us



Key specification

Key Specification of Filament Evenness Tester

No. of capacitance testing slot 4
Yarn count range: 10 dtex ~ 1670 dtex
Test speed 25, 50, 100, 200, 400, 800 m/min
Test time 10 sec ~ 20 min, settable
CVm%, U% range 0.2% ~ 100%
CV-L curve Cutting length 1.7cm ~ 1000m
Deviation rate (DR%) value DR (1m, +5%), DR (1m, -5%),
DR (20cm, +35%), DR (20cm, -30%)
Spectrogram 170 channels
Wavelength range 1.7cm ~ 2000m
Linear density histogram -100% ~ +100%, +100% ~ +200%
Twisting direction S or Z
Twisting speed 4000rpm~30000rpm, adjustable
Compressed air Air pressure: 0.6MPa ~ 0.8Mpa
Air consumption: about 10m3/h
Ambient conditions Temperature: 20±3℃, Humidity: 65±5%RH
No obvious vibration and ensure reliable grounding. The temperature and humidity must be maintained stable with no frequent fluctuation, in order to avoid influence on the test result.
Power supply AC 220V, 50Hz, 400W
Dimension (W*D*H) Main machine: 32*45*70cm
Yarn creel: 34*20*70cm
