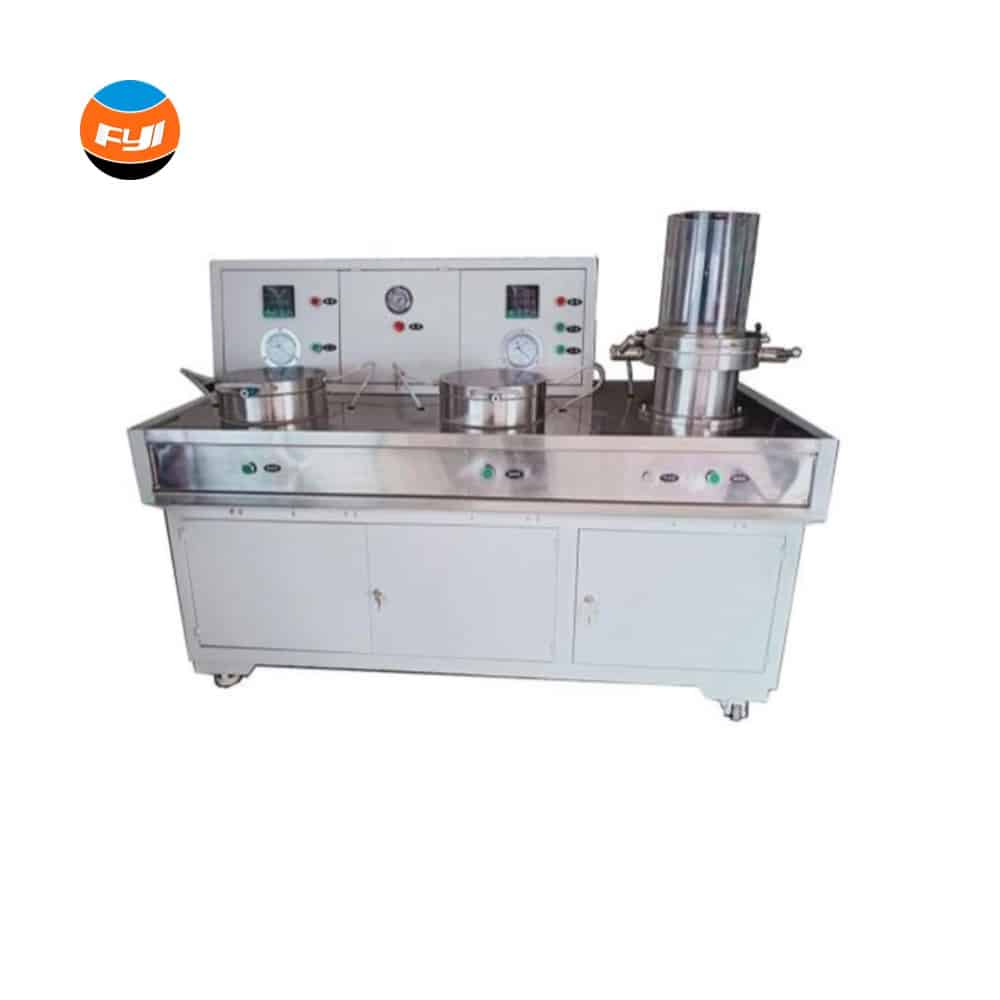

Sheet Former PAP-70
The PAP-70 Sheet Former is a piece of experimental machinery that shapes pulp and carries out quick vacuum drying using the quick Kaiser process.
Sheet Former PAP-70
PAP-70 Sheet Former is an experimental equipment that uses the rapid Kaiser method to shape pulp and perform rapid vacuum drying.
Here are the features of the machines:
- Fully automatic, noise-free sheet former: scientifically precise, compact and reasonable in design, small in size, easy to operate and move;
- Heating element: high-quality 304 stainless steel forgings and cast copper, strong corrosion resistance; heat transfer medium remains glycerin, sturdy, attractive and durable. Heating capsule upgraded to stainless steel: safe, durable, ensuring good paper flatness and smoothness;
- Dryer stable and gentle heating, max temperature 100-120℃;
- Flat-plate condenser: redesigned per ISO5269/2, drying performance better than traditional products;
- New process design: prevents moisture from condensed water accumulation on the flat-plate condenser, ensuring even, thorough drying of paper samples with no wet spots and higher quality;
- Elastic pressing plate: maintains satisfactory flatness for paper samples of any thickness;
- Latest intelligent temperature control: temperature error within ±2℃;
- Fully button-operated automatic control: convenient and fast.
APPLICATION
Application of Sheet Former
The PAP-70 Sheet Former is a piece of experimental machinery that shapes pulp and carries out quick vacuum drying using the quick Kaiser process.
If you need more information about the machine, please contact with us.
Key specification
Key Specifications of Sheet Former
| Sample diameter | ≦200mm |
|---|---|
| Mesh specifications | 60、80、100(Choose two of them) |
| Vacuum limit | -0.097Mpa |
| Vacuum pumping volume | max volume 1.83m³/min; (1.5 training points higher than traditional) |
| Drying temperature | 95 ℃ -130 ℃ |
| Weight | 400KG |
| Heating power | 3.6KW |
| Dimensions | 1700mm×700mm×1200mm |
| Paper pattern thickness | 0.02—6mm |
| Temperature difference error | ± 2 ℃ |
| Accuracy | ± 1 ° C |
