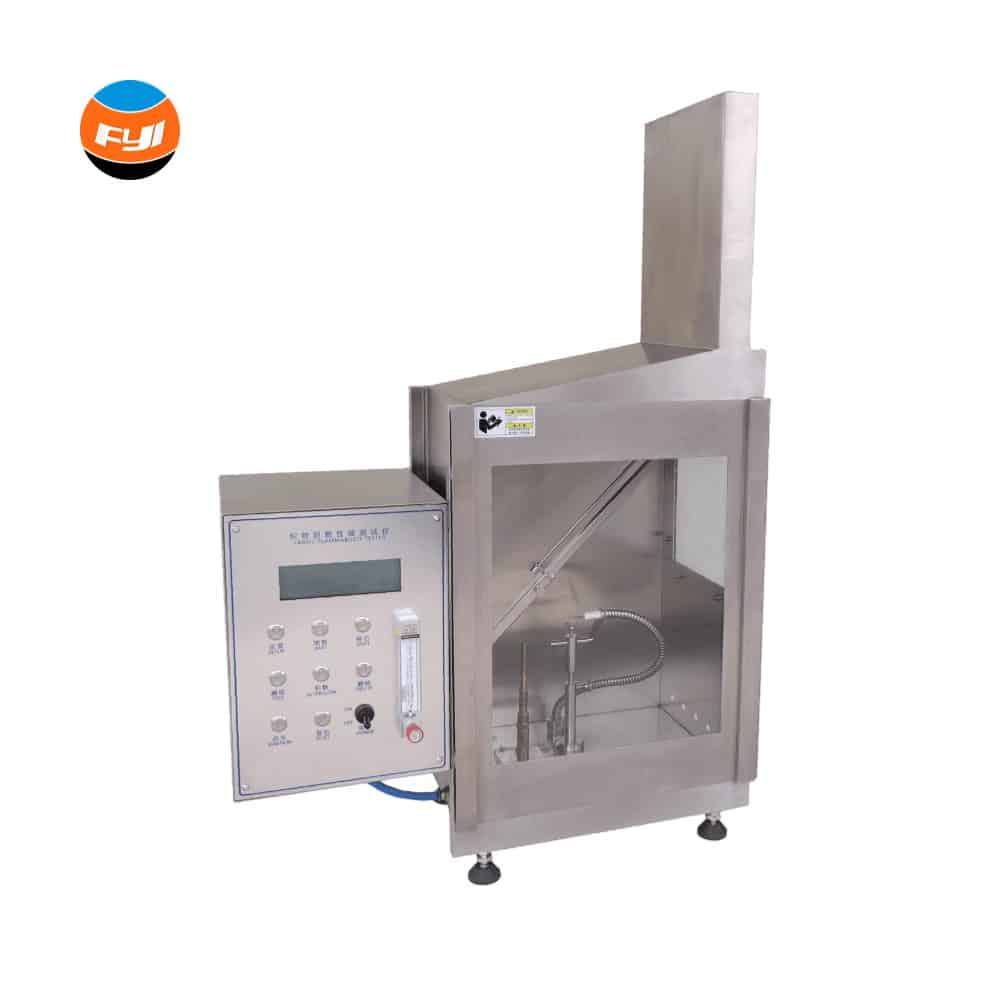

GB 45 Degree Automatic Flammability Tester YG815C

Rated 0 out of 5
(be the first to review)

GB 45 Degree Automatic Flammability Tester, also named automatic flammability tester, which to determine the burning area and length of textiles or the melting behavior of other materials.

GB 45 Degree Automatic Flammability Tester YG815C

GB 45 Degree Automatic Flammability Tester. To determine the burning area and length of textiles or the melting behavior of other materials.

Follows are features of automatic flammability tester:

  • Gas pipeline system special designed, low space occupied, and convenience to move;
  • LED displayer shows the igniting time, after-flame time, preheat time and number of igniting, with high working efficient and the data more accuracy;
  • Stainless steel construction, large glass-viewing window;
  • Excellent reliability and minimum maintenance;

Application

Application of GB 45 Degree Automatic Flammability Tester

GB 45 Degree Automatic Flammability Tester. To determine the burning area and length of textiles or the melting behavior of other materials.

If you need more information about Automatic Flammability Tester please contact with us.

Standards

Automatic Flammability Tester Standard

 STANDARDS GB/T14645

Key specification

Key specification of Automatic Flammability Tester

  • After-flame time range       0-999.9s   resulotion 0.1s
  • Afterglow time range          0-999.9s   resulotion 0.1s
  • Burning time                          Method A –thin fabric 30s, thick fabric 120s                                                           Method B –manual control
  • Internal diameter of igniter    Method A –thin fabric¢6.4mm, thick fabric ¢20mm                             Method B –¢6.4mm
  • Size of specimen holder     Method A — external size 490×230mm(L×W),Internal size 250×150mm(L×W)

Method B—screw ¢10mm,screw interval 2mm,total length 150mm

  • Flame height    Method A –thin fabric45mm, thick fabric 65mm

Method B –45mm
