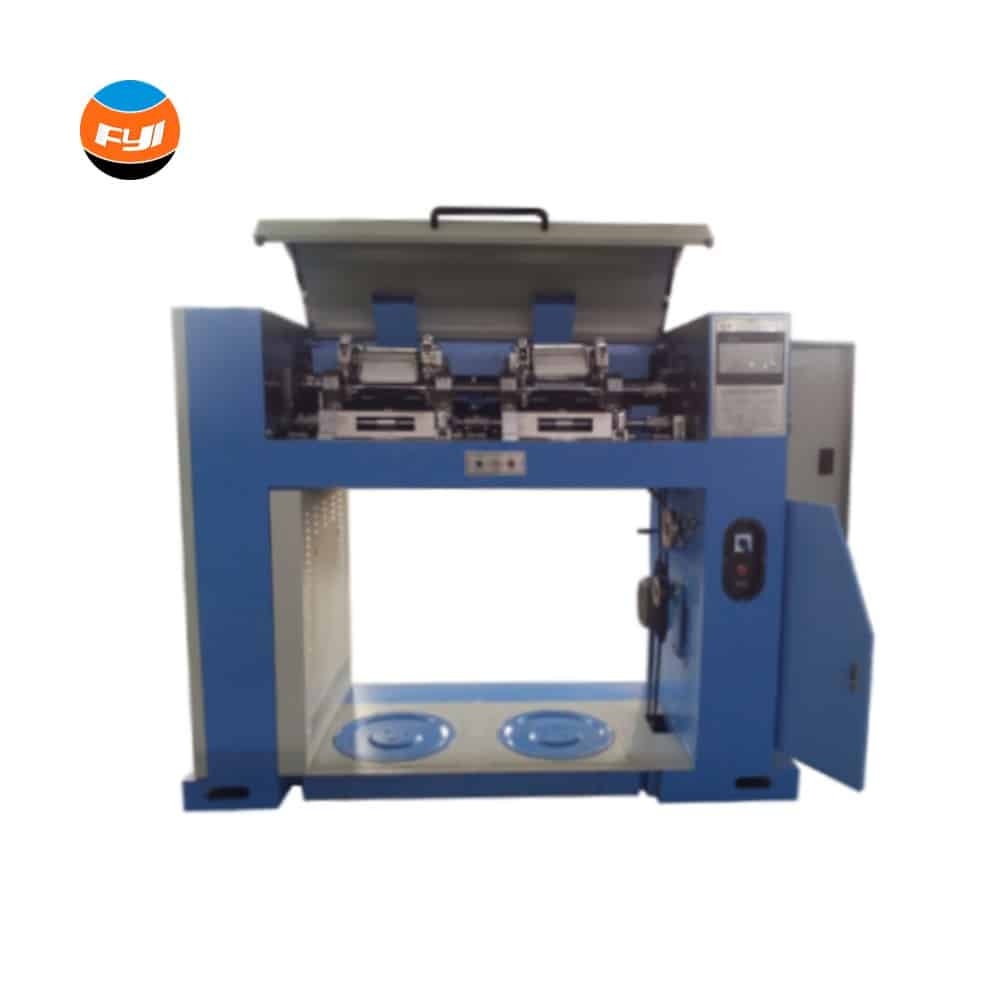

Lab Wool Drawing Frame Machine DW7020M

Rated 0 out of 5
(be the first to review)

LAB WOOL DRAWING FRAME MACHINE  is suitable for sheep wool, cashmere, Laboratory wool drawing frame is used to make drawn sliver from carded sliver.It is widely used in universities and researching for wool spinning system ..

Lab Wool Drawing Frame Machine DW7020M

FYI is lab wool drawing frame machine manufacturer which provide high quality wool drawing frame machine with reasonable price. Spare parts are all in readiness to avoid long delivery time when ordering.

This machine is suitable for sheep wool, cashmere, Laboratory wool drawing frame is used to make drawn sliver from carded sliver.

Follows are features of wool drawing frame machine:

  • Use standard can coiler to output cotton sliver;
  • PLC + touch screen control, easy to learn and operate;
  • Multi-functional design, easy to clean, set and maintain.
  • Intervet control main motor, stepless-speed
  • Equipped with the structure of adjustable tension
  • Weight and drafting range can be changed by hand shank

Application

Application of lab wool drawing frame machine

DW7020M LAB WOOL DRAWING FRAME MACHINE  is suitable for sheep wool, cashmere, Laboratory wool drawing frame is used to make drawn sliver from carded sliver.

It is widely used in universities and researching for wool spinning system ..

If you need more information about wool drawing frame machine process, lab wool drawing frame machine spare parts and lab drawing machine price please contact us.



Standards

Standards of lab wool drawing frame machine

Key specification

Key specification of lab wool drawing frame machine

Fiber length 22-76 mm
No.of deliveries 2
output speed

Drawing type

Total drafting

Load type

Feeding number

Can feeding diameter



Can output diameter



178~600 m/min

3 Over 3 with pressure bar and top guide roller

4.01329  ~ 13.5558

Spring loaded or pneumatic loading

3 -8

Φ400/Φ500/Φ600

height 900, 1100mm

Φ350/Φ400 /Φ500

height 900, 1100mm

Feeding way Wing overhanging type ,positive feeding
Operate mode

Can change motor

Main Motor

Touch screen & PLC control
380v 0.25kw 910r/min

380V 3.5/0.8KW

Power supply 3 phase AC380V 50Hz, 4kW
Dimension

Net weight

3m *0.8m *1.8m

2150KG
