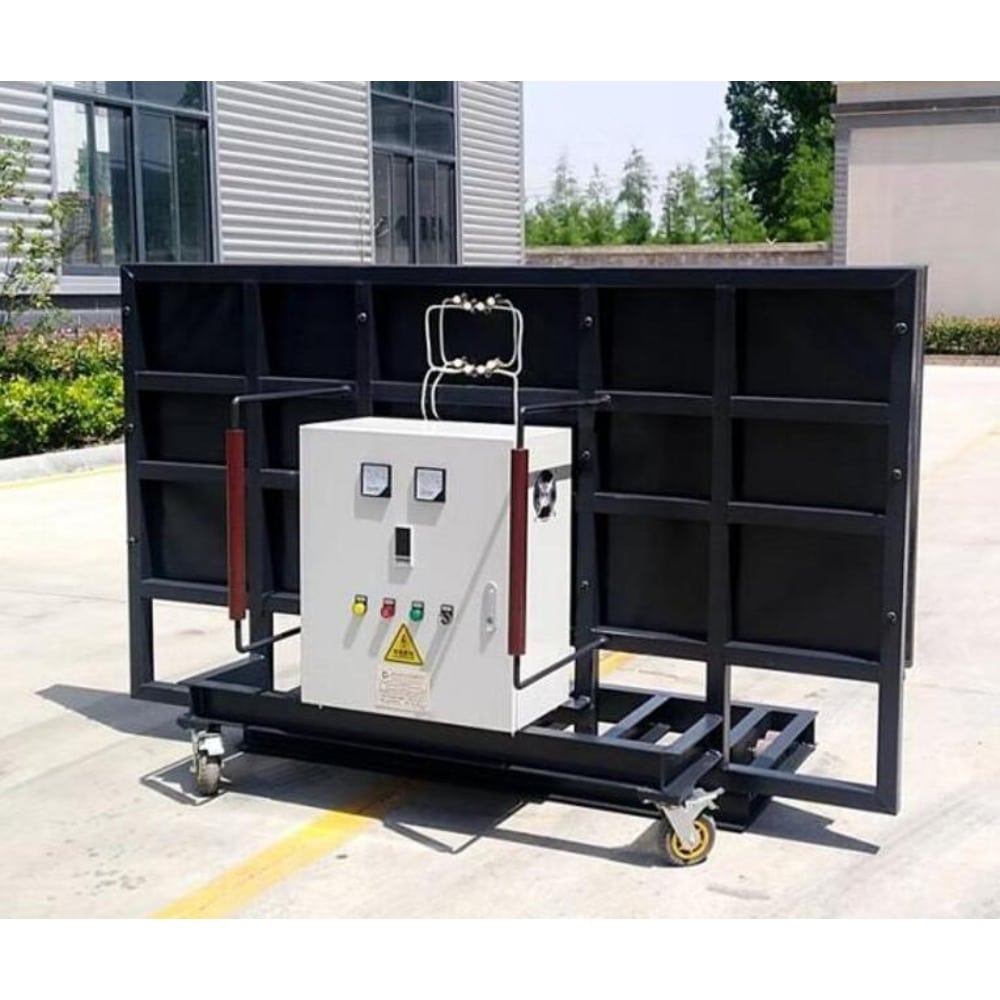

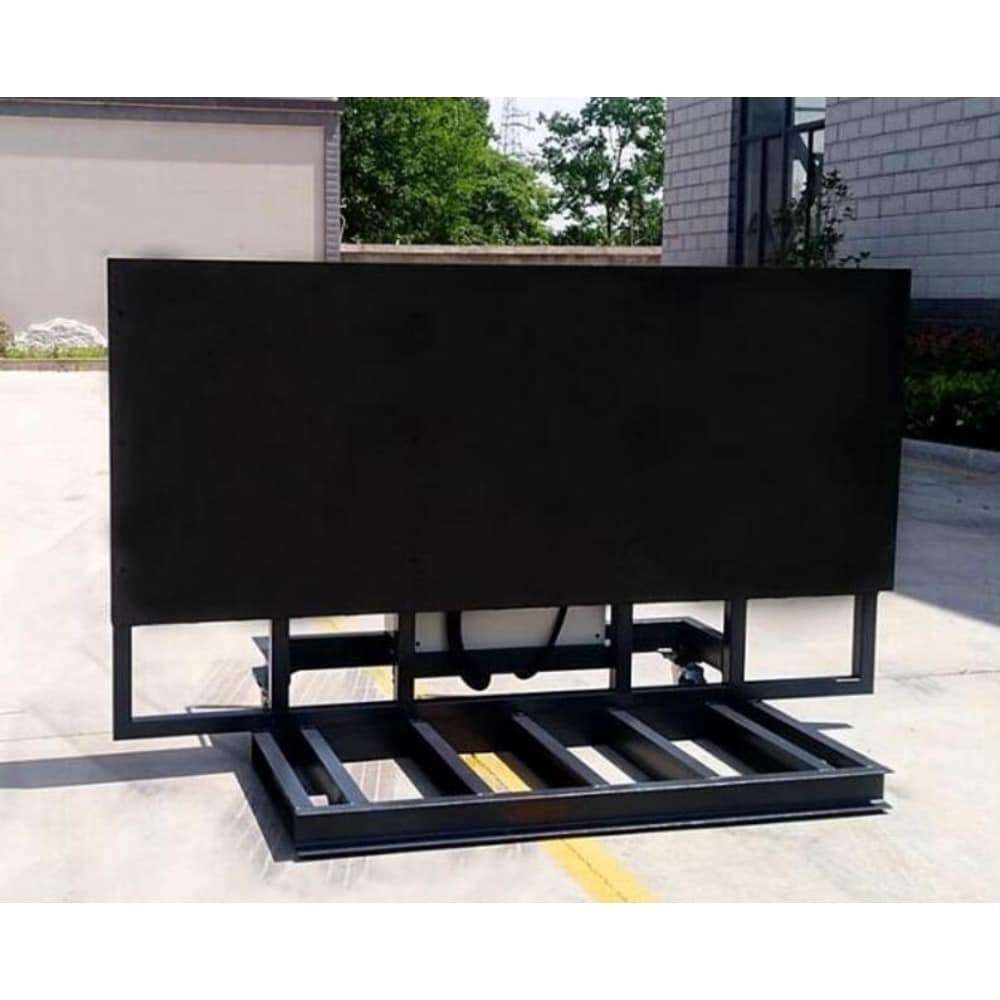

Yarn Heat Fixing Device YHF-2300
High twist yarns and shape elastic yarns are useing yarn heat fixing device YHF-2300. The warp yarns will be connected just as regular warp yarns or threaded automatically after heat treament.
Yarn Heat Fixing Device YHF-2300
YHF-2300 Yarn Heat Fixing Device is used to shape elastic yarns or high twist yarns. After heat treatment, these warp yarns can be automatically threaded or connected like normal warp yarns.
Here are the features of the machine:
- Improved warp productivity;
- Wide application range;
- Almost all types of synthetic fibers are available;
- Meet diverse customer needs;
- Save time and cost;
- Reduced downtime of the loom caused by interlacing warp yarns;
- There will no longer be fabric defects caused by wearing errors;
- Reduce labor costs;
- Long applicable lifespan;
- Easy to operate.
Application
Application of Yarn Heat Fixing Device
High twist yarns and shape elastic yarns are useing yarn heat fixing device YHF-2300. The warp yarns will be connected just as regular warp yarns or threaded automatically after heat treament.
If you need more information about the machine, please contact us.
Key specification
Key specification of Yarn Heat Fixing Device
| Board width | 2300mm or Specified before order |
|---|---|
| Board height | 950mm or Specified before order |
| Max temperature | 245℃ |
| Temperature accuracy | ±3℃ |
| Dwell time(thermal fixation time) | 3~15S |
| Power supply | 380V,50/60HZ, 3 phase, 25KW |
| Gross weight | 1050KG |
| Packing size(L*W*H) | 2400*1250*1500mm |
