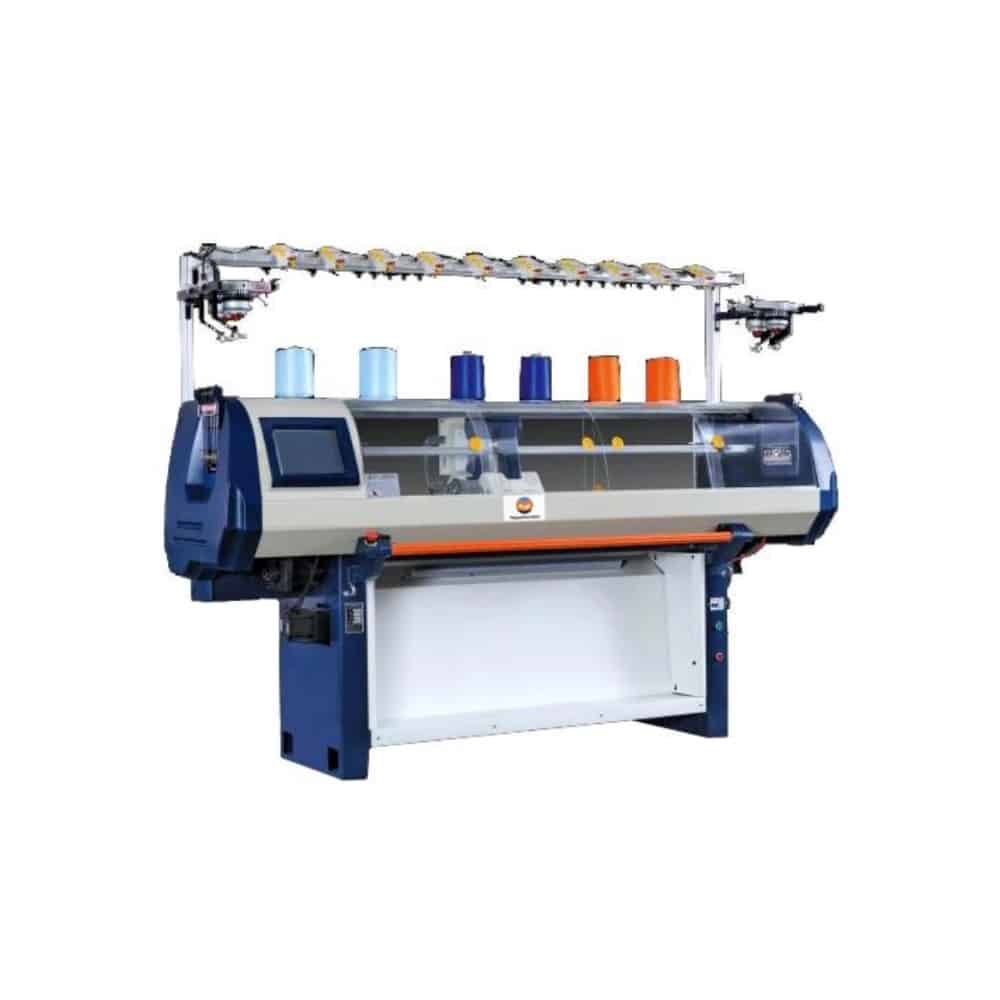

Computerized Flat Knitting Machine CF142S
CF142S Computerized Flat Knitting Machine is a weft knitting needle plate latch needle loom. It is applicable to collar, sweater, hat, beanie, scarf, baby clothes, cardigan, jerseys, school uniform, gloves, ribcuff, pocket, trousers and shawl knitting.
Computerized Flat Knitting Machine CF142S
CF142S Computerized Flat Knitting Machine is a weft knitting needle plate latch needle loom. It is applicable to collar, sweater, hat, beanie, scarf, baby clothes, cardigan, jerseys, school uniform, gloves, ribcuff, pocket, trousers and shawl knitting.
Follows are features of Knitting Machine:
- The cam structure optimization, use the motor model, greatly improves the speed ofneedle transfer. Micro Computer control with LCD display, data direct input easy to keyin programs, easy to operate, read and obtain information as to the performance ofmachine. All the information is very clearly display on LCD panel.
- Small carriage, can return fast, improves work efficiency.
- The yarn storage improves the flatness of fabric.
- Needle plate adopts the milling flute method with simple structure; it can sustain highefficiency working after heat treatment.
Application
Application of Computerized Flat Knitting Machine CF142S
CF142S Computerized Flat Knitting Machine is a weft knitting needle plate latch needle loom. It is applicable to collar, sweater, hat, beanie, scarf, baby clothes, cardigan, jerseys, school uniform, gloves, ribcuff, pocket, trousers and shawl knitting.
Key specification
Key specification of Computerized Flat Knitting Machine CF142S
| Gauge | 5G, 6G, 7G, 8G, 9G, 10G, 12G, 13G, 14G, 15G, 16G |
|---|---|
| Knitting/CAM system | Single system single carriage |
| Knitting width | 44inch, 54inch, 60inch, 80inch, 100inch (±3%) |
| Knitting speed | Max. 1.2m/sec (Knitting speed varies according to gauge, yarn and knitting conditions.) |
| Knitting function | Tuck on front bed & rear bed, high butt & low butt system. |
| Stitch density | Stitch system controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology: 0-650. Electronic control with stepping motor 00-99 levels. |
| Racking | Controlled by AC servo motor, racking within 2 inches and with fine adjusting function. 6 levels to left or to right. |
| Drive system | Trimming belt, no oil needle, programming speed. |
| Needle selection | Controlled by computer, electric magnet needle choose system with high efficiency. |
| Yarn carrier | 6 yarn carriers on each side of 4 guide rails, shiftable on any needleposition |
| Take down roller | Programmed instruction controlled by stepping motor, 32 section levels selection adjustable area: 0-100 |
| Protection system | Operation Lamp: Green: Normal operation. Yellow: abnormal stop. Fluorescent Lamp: Inside of safety lamp.Safety cover: Full safety cover for anti-noise and dust proofing. |
| Control system | 1. Adopt LCD screen, input device: USB, system memory 256mb, a great amount of design files can be stored. 2. Monitoring menu, each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running. 3. Design system is visual and easy to understand and upgrad. 4. Multi language version, there are Chinese, English, etc. |
| Power supply | AC220V, 50Hz; 1/3 Hp |
| Fabric Take-Down | Compound main roller, torque motor control, two separate speeds Adjustable each. Stop motion: Yarn break, knot, needle break, shock, fabric dropout, wraparound check, piece count, motor overload etc. |
| Top Tensions | Electronic top tensions easy to thread the yarn through |
