Gloves Cut Resistance Tester FY012J

Rated 0 out of 5
(be the first to review)

Gloves Cut Resistance Tester, also named EN388 Protective Clothing Cut-resistance Testing Machine, which is used to determine the cut-resistance property of materials from protective gloves.
Specimens are cut by a counter-rotating circular blade, which moves with an alternating motion under a specified load.

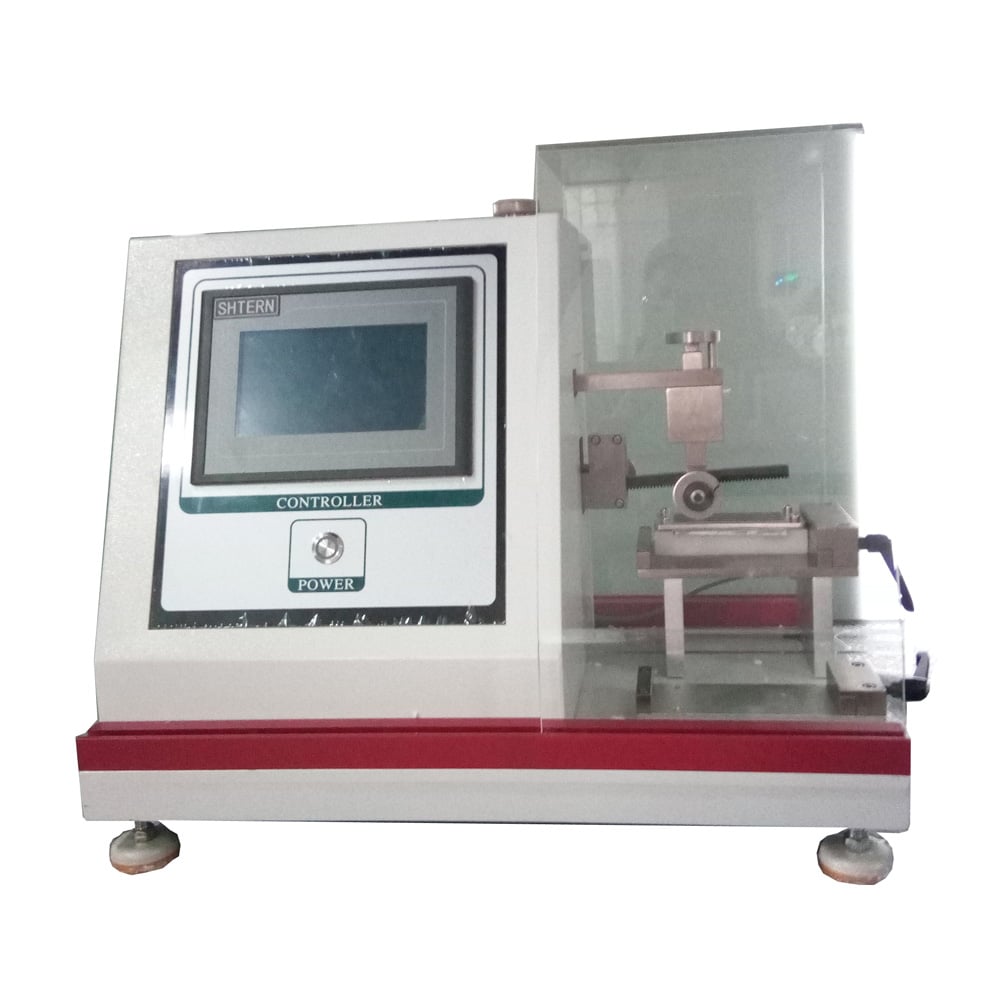

Gloves Cut Resistance Tester FY012J

Gloves cut-resistance testing machine, to determine material cut-resistance property, specimens are cut by a counter-rotating circular blade, which moves with an alternating motion under a specified load, such as 5N.

Follows are Gloves Cut Resistance Tester Specification :

  • LCD display;
  • With air level;
  • With dust cover;
  • With sample mounting station and mounting station;
  • Two operating modes: manual and automatic;
  • High-hardness electro-conductive rubber base;

Application

Application of Gloves Cut Resistance Tester

Gloves Cut Resistance Tester is specially designed to test the strength of protective gloves and upper protection areas. The anti-cutting performance of gloves or upper shoes was determined by cutting samples with a circular cutter rotating counterclockwise under specified load.

If you need more information about EN388 Protective Clothing Cut-resistance Testing Machine, please contact with us.

Standards

Gloves Cut Resistance Tester standards

ISO 20344.6.14 EN388.6.2

Key specification

Key specification of Gloves Cut Resistance Tester

Loading pressure 5N±0.05N
Blade size Φ45±0.5 mm  3mm in thickness
Cutting Travel 50mm
Cutting speed 10cm/s
Counter 1~99999.9
Power Supply AC220V±10% 50Hz Or specified by user
Instrument Dimension 550×350×350mm(L×W×H)
Instrument weight 80KG
