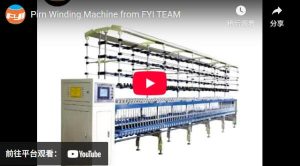

Pirn Winding Machine DW7150F

Rated 0 out of 5
(be the first to review)

Pirn Winding Machine, also named Computer Intelligent Vertical Weft Winder. It is suitable for winding different yarns (silk threads) such as pure cotton, Polyster cotton , ramie, low elasticity filament, mid fiber, etc(silk )yarn winding .

Pirn Winding Machine DW7150F

DW7150F Pirn Winding Machine is the most advanced in the preparatory industry of textile weaving and tatting to roll or wind the bobbin yarn into woof yarn for weaving. The machine is suitable for winding different yarns (silk threads) such as pure cotton, Polyster cotton , ramie, low elasticity filament, mid fiber, etc(silk )yarn winding .

Computer Intelligent Vertical Weft Winder which is preparation for weaving industry , Winding and bobbin yarn into weft tube yarn is one most of advanced weft winding equipment in weaving . This machine quotes the latest international digital programmable control technology and applies the most advanced automation equipment .IN place of traditional mechanical transmission .the key technology of spare parts is the manufacture of weft-winding machine , which has a high scientific and technological content .

Follows are features of pirn winding machine:

  • The human-computer interface adopts the top-class touch screen.
  • PLC programmable digital movement logical controller.
  • Subdivided servo stepping driver.
  • High-performance large torque stepping motor.

Application

Application of Pirn Winding Machine

Pirn winding machine, which is preparation for weaving industry , winding and bobbin yarn into weft tube yarn is one most of advanced weft winding equipment in weaving .  It is suitable for winding different yarns (silk threads) such as pure cotton, Polyster cotton , ramie, low elasticity filament, mid fiber, etc(silk )yarn winding .

If you need more information about Pirn Winding Machine ,please contact us.

Standards

Pirn Winding Machine standards

Key specification

Key specification of Pirn Winding Machine

MODEL Vertical working mode( Double side )
Spindle numbers 12 spindles , 60 spindles ,92spindles, 124 spindles, .284spindles 316 spindles
Spindle distance 70mm
Spindle speed 256-3800 m/min
Motion range of yarn guide stepless adjustm ent
Coiling pitch stepless adjustment
Maximum winding diameter 32 mm
Maximum winding height 20mm
Yarn preparation length  tepless adjustment
Power Supply 380V 50hz
