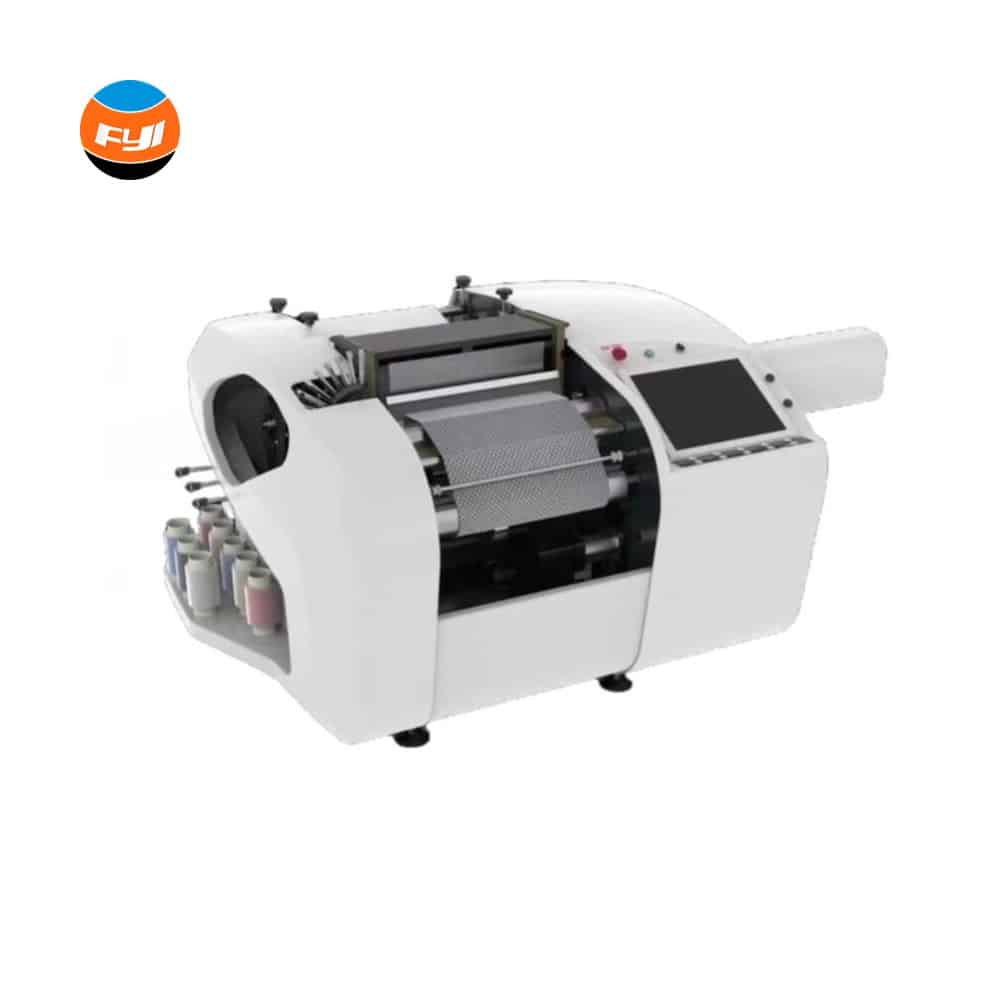

Towel Rapier Sample Loom DW598T Series
Sample weaving of different towels is done with the DW598T Series Towel Rapier Sample Loom. It is extensively utilized in textile institutes, weaving mills, scientific research facilities, international trade firms, etc.
Towel Rapier Sample Loom DW598T Series
DW598T Series Towel Rapier Sample Loom is used for sample weaving of various towels. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Application
Application of Towel Rapier Sample Loom
Sample weaving of different towels is done with the DW598T Series Towel Rapier Sample Loom. It is extensively utilized in textile institutes, weaving mills, scientific research facilities, international trade firms, etc.
If you need more information about towel rapier sample loom, please contact us.
Key specification
Key specification of Towel Rapier Sample Loom
| Applicable material | Cotton, wool, flax, silk, chemical fiber, blending, etc |
|---|---|
| Yarn range | 10-2000Tex |
| Reed width | 50cm (20in.) |
| Speed | Max. 30weft/min |
| Weft selection | 8 colors, fully automatic, pneumatic control |
| Heald frame position | 20(Including selvedge heald frames) |
| Shedding | Computer control, pneumatic |
| Weft insertion | Servo system control, rigid rapier |
| Weft cutting | Pneumatic control |
| Beating -up | Cam beating-up |
| Take-up | Independent stepping motor for take-up, weft density range can be adjusted |
| Let-off | Two beams, independent stepping motor actively let-off, can proceed variable let-off |
| Warp tension control | Analog warp tension detecting |
| Loop length | 0.5~1.5mm, loop length can be adjusted, program control |
| Raising method | Three or four wefts, program control |
| Protection | Equipped with automatic stop for weft yarn breakage, reed seat and rapier in position detection, air pressure detection and dynamic tension detection to prevent mis-operation; Analog tension detection makes weft yarn density more accurate and reliable |
| Power supply | AC 220V, 50Hz |
| Air consumption | 240L/min |
| Air pressure | 0.4-0.75MPa |
| Overall dimensions | 880*1250*1100mm for 20inch |
| Weight | 500kg |
