Yarn Twist Tester Y331A-II

Rated 0 out of 5
(be the first to review)

Yarn Twist Tester, also named Electronic Twist Tester or Digital Twist Tester. FYI is one of the best manufacturers and suppliers of Yarn Twist Tester in the world, devoting to offering cost effective testing solutions and equipments for various industrial applications.

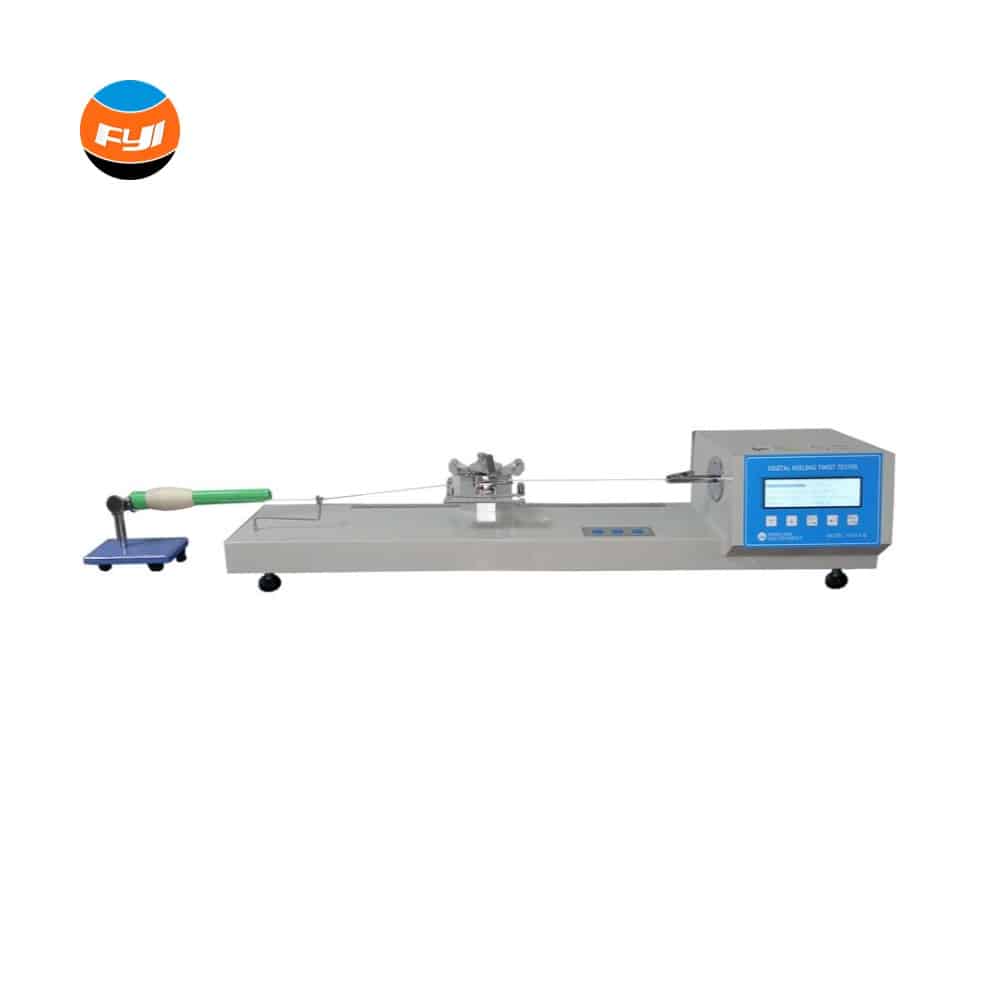

Yarn Twist Tester Y331A-II

The Yarn Twist Tester manufactured by FYI based on a diverse range of testing requirements or standards. Engineers available to service machinery overseas. Of course, we also have agents and distributors to assist you timely in over 20 countries around the world.

This yarn twist tester electronic is designed to determine single or plied yarns twist by conventional or untwist/re-twist methods.

Follows are features of digital yarn twist tester

  • Controlled by microcomputer, large-screen LCD displayer (made in CHINESE TAIWAN), support both Chinese and English menus by switch, man-machine interactive dialogue operation;
  • This textile twist tester with data storage function when power off, query up to 300 groups data, and print out test report in English or Chinese optionally;
  • “zero” position is detected by optocouple sensor to avoid “zero” shift caused by Hall sensor;
  • Right sample grip is derived high-performance direct-drive stepper motor, rotational speed can be arbitrary preset to avoid the problems of brush wear and spark interface which is caused by DC motor completely;
  • Add the pre-tension at horizontal direction.

Application

Application of Yarn Twist Tester

Yarn Twist Tester is used to determine yarns twist by four method.Method is Direct count; Once twist/retwist method; Twice twist/retwist method; Triple twist/retwist method

User can add the pre-tension at horizontal direction. Right sample grip is derived high-performance direct-drive stepper motor, rotational speed can be arbitrary preset to avoid the problems of brush wear and spark interface which is caused by DC motor completely; The machine With data storage function when power off, query up to 300 groups data, and print out test report in English or Chinese optionally;

Yarn Twist Tester complies with GB/T 2543.1/2, FZ/T 10001, ISO 2061, ASTM D1422/1423 etc international and retailer standards.

If you need more Yarn Twist Tester Machine. Please contact with us

Standards

Standards of Yarn Twist Tester

GB/T 2543.1/2, 14345 FZ/T 10001 ISO 2061 ASTM D1422/1423

Key specification

Key Specification of Yarn Twist Tester

Test Method Direct count
Once twist/retwist method
Twice twist/retwist method
Triple twist/retwist method
Sample length 25,50,100,250,500(mm)(selectable)
Range of tested yarn 1~499.9tex
Range of test 1~9999.9 twist
Rotational speed 300~1200r/min (adjustable)
Metallic scale accuracy 1mm
Power supply AC220V 50Hz 20W
Instrument size 1070×240×200mm
Instrument weight 30kg
