Melting Point Tester: The Complete Guide to Instruments, Types, and Applications

A melting point can immediately identify the material and define its purity. A melting point tester can determine the exact melting point of a material using a heat ramp and recording temperature changes when a solid transitions to a liquid.

This guide covers how a melting point tester works, the different types of melting point testers for labs and research institutions, and the industrial standards of testing.

What Is a Melting Point Tester?

A melting point tester is a lab instrument that you can use to determine the temperature at which a solid substance transitions into a liquid. It is a transition temperature and a physical property that can identify a compound and assess its purity.

A pure substance has a sharp and defined melting point. If any contaminants or unwanted substances are present, the melting point drops and spreads over a range of temperatures. The purity and melting behavior analysis is what makes a melting point tester a crucial instrument in pharmaceutical, chemical synthesis, and material research.

A melting point measuring instrument typically includes a heating element, a temperature sensor, a sample holder, and an observation system, such as a lens or camera.

Working Principle and Testing Method of a Melting Point Tester

The main principle behind the melting point testing machine is heating the solid sample at a controlled rate and recording the temperature. The most important part is detecting the phase change.

Modern melting point testers use a precision melting heating block with a resistance thermometer, usually a platinum resistance thermometer (PT1000 sensor). The block heats the sample at a rate set by the user, and typically the ramp is 0.1°C/min to 1°C/min for accurate results.

Detecting the phase change is done through two ways.

• Visual Observation: Operator watches through a lens and observes when the sample clears.
• Photometric Detection: A light source shines through a capillary, and when the sample completely melts, the increase in light transmission is recorded by a photodetector, which starts a temperature log automatically.

When logging the temperature manually or automatically, there are two important temperatures. Onset point: when the sample first begins to collapse or melt, and clear point: when all solid material has completely changed into liquid.

Oil Heating vs Heating Block Testing Methods

Oil bath is an old method of melting point testing done with a Thiele tube. A glass tube filled with mineral oil is heated with an external burner or current. The capillary tube with the sample is immersed in the heated oil alongside a thermometer.

There are many drawbacks to this old method, the most significant one being non-uniform heating. The degree of accuracy is greater than 1°C, and the setup poses a burn hazard because of the oil spillage. Modern melting point test apparatus no longer uses this method.

Heating Block Method

Heating block method is a popular melting point testing method in labs. A solid aluminum block is used because of its high thermal conductivity, and it can distribute heat more uniformly. The heating block is controlled using a small microprocessor temperature controller. Heating blocks can hold heating rates as slow as 0.1°C/min and reach hundreds of degrees in temperature.

Capillary Method vs Liquid Melting Point Testing

Most pharmaceutical labs use the capillary method under USP <741>, Ph.Eur.2.2.14, and JP2.60. A small amount of dry powder is packed into a glass capillary tube with an outer diameter of 1.3 – 1.8 mm and a wall thickness of 0.1 mm. The capillary is filled up to 4 mm and compacted.

The filled capillary is inserted into the heating block vertically. Then there’s a light source that illuminates the sample from below, and a photodetector monitors the light passing through. When the solid melts, light transmission increases sharply, and the instrument can record the onset and clear temperatures.

Liquid (Open Tube) Melting Point Testing

To test the melting points of lipid-based materials, fats, and waxes, the open-tube melting-point testing method is used. Because the fat or grease sample rises in an open-ended tube as it softens, the temperature at which it first moves is recorded.

This does not give a true melting point but measures the behavior of solid materials rather than a crystalline phase transition.

Light Transmission Method: YG252D Melting Point Tester

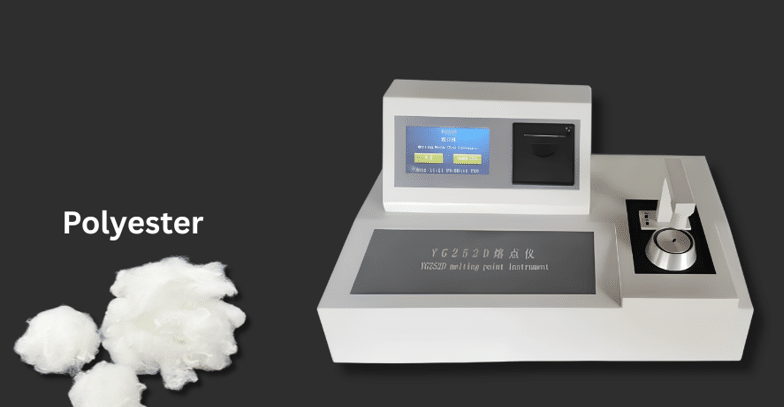

Modern melting point test apparatus uses a microcomputer to log temperature changes, and the YG252D is specifically designed for the textile and polymer industries. Most lab melting point testers focus on pharmaceutical powders; the YG252D targets materials like PET chips, synthetic fiber, and industrial powders.

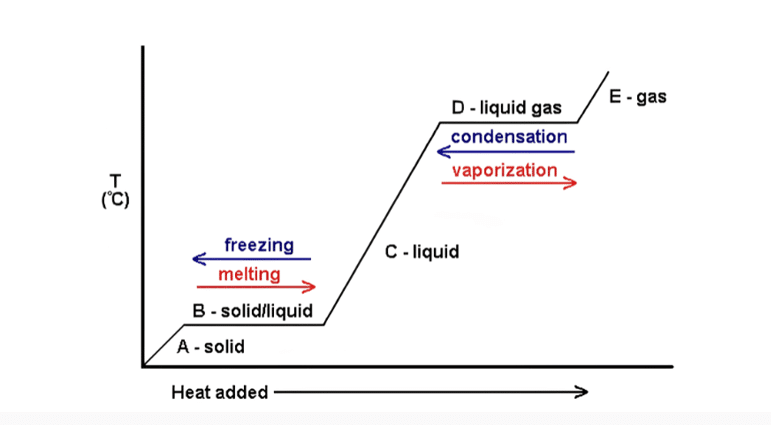

To record the melting point, it uses a solid sample, and as it melts, the solid transitions from opaque to transparent, and the amount of light passing through increases sharply. The melting point testing machine tracks the light transmission continuously during the heating cycle and uses a microcomputer built into the machine to identify the melting point from a logged curve.

How to Perform a Melting Point Test

Sample Preparation

You don’t need the entire material to find the melting point; you can work with a small sample. Grind the sample into a powder and use a dry sample. Avoid moisture because it can soften the sample and distort the transmission curve.

For PET chip or a fiber sample, it needs to be small enough to sit in the sample holder. You can do this by cutting or grinding. Once the sample is packed, you can set parameters.

Setting Instrument Parameters

Set the start temperature 5°C below the expected melting point. If you don’t know the melting point range, you can use a large temperature ramp, like 2°C/min or 4°C/min, to see where it melts for an approximate value.

The machine automatically logs the data for the curve, but you can also choose manual mode to observe the curve yourself.

Running Test

The prepared sample is inserted into the machine, and the heating ramp started. The instrument heats at the programmed rate and monitors light transmission through the sample. Both onset temperature readings and clear point readings are automatically recorded, and a curve is produced. The difference between these two values is the melting point.

Technical Parameters of a Melting Point Testing Machine

Parameter	Typical Range
Temperature Range	Ambient to 300-400°C	Most APIs melt below 300°C; 400°C models cover high-melting materials
Temperature Accuracy	±0.2°C to ±1.0°C	Better than ±0.5°C below 200°C is standard for pharmaceutical use
Resolution	0.1°C	Required for pharmacopeial compliance
Heating Rate	0.1°C/min to 10°C/min	1°C/min is the standard for final measurements
Sample Capacity	1-6 capillaries simultaneously	Higher capacity reduces analysis time in high-throughput labs
Detection Method	Visual, photometric, or video	Video-based detection reduces operator subjectivity
Data Compliance	21 CFR Part 11, EU GMP Annex 11	Required in FDA-regulated pharmaceutical manufacturing
Cooling Time	3-10 minutes (block to start temp)	Faster cooling improves throughput between runs

Industry Standards for Melting Point Testing

Standard	Organization	Scope
USP <741>	United States Pharmacopeia	Melting range determination: five sub-methods depending on sample type
Ph. Eur. 2.2.14	European Pharmacopeia	Capillary method; heating rate 1°C/min; records onset and clear point
Ph. Eur. 2.2.60	European Pharmacopeia	Melting point:  instrumental method (automated video detection)
JP 2.60	Japanese Pharmacopeia	Melting point determination for APIs and excipients
ChP 0612	Chinese Pharmacopeia	Melting point and melting range
OECD TG 102	OECD	Melting point/melting range for chemical safety testing
ISO 17025	ISO	General requirements for testing laboratory competence; applies to calibration.

How Much Does a Melting Point Testing Machine Cost

The price of a melting point testing machine depends on the temperature range and resolution. The most basic instrument for educational use costs around $300, and completely compliant testers with industrial standards can cost a few thousand dollars ($3000 – 8000).

For example, pharmaceutical labs require compliance and data integrity, which comes at a cost ranging between $6000 – $15000, depending on the size, automation, resolution, and how many samples it can process at once.

Conclusion

Melting point tester is one of the most cost-effective analytical instruments for your textile house or laboratory. The apparatus is important for reliable, rapid, and purity data for solid crystalline compounds.

The choice of instrument, from a simple digital instrument to a fully automated data logger with GMP-compliant software, depends on your regulatory requirements and budget. For textile, research, or teaching applications, a digital melting point test apparatus like YG252D with a 0.1°C or lower is adequate and affordable.

FAQ

What is a melting point tester, and how does it work?

A melting point tester is an instrument that heats a solid sample at a controlled rate and then logs and measures the temperature at which the solid transitions to a liquid.
