Pitch Twin Screw Melt Spinning Machine DW7090F

Rated 0 out of 5
(be the first to review)

DW7090F Twin Screw Melt Spinning Machine for pitch  is suitable for small batch production of carbon fiber or simulation teaching of complete production process.

Pitch Twin Screw Melt Spinning Machine DW7090F

Pitch twin screw melt spinning machine is one of the melt spinning machine in FYI. It uses twin screw melt extrusion to ensure that the estrusion material has enough pressure.

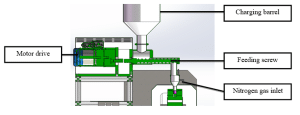

Automatic metering feed

The material is stored in charging barrel. After setting the amount of material needed to be input, the feeding motor starts to drive the screw. When the feeding amount reaches the set value, the motor stops working and the automatic feeding stops.

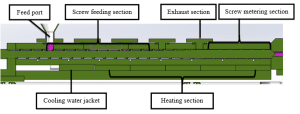

Twin screw melt extrusion

The material enters the screw extrusion part after measured by the cylinder. The screw melt amount is gradually reduced from left to right to ensure that the extrusion material has enough pressure. And the uniform melt amount of the metering section can ensure the stability of discharge.

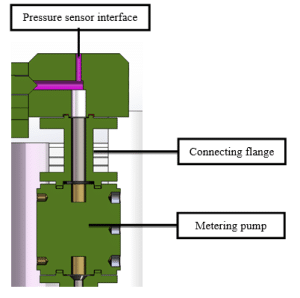

Metering pump

The melt material comes to the metering pump through the screw extruder. All connecting parts of the pump are heated by heating pipes to ensure the uniform temperature and stable flow rate in the flow channel.

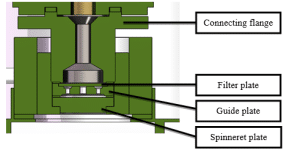

Spinning pack

Spinneret material SUS630
Hole number 10~120
L/D 3:1

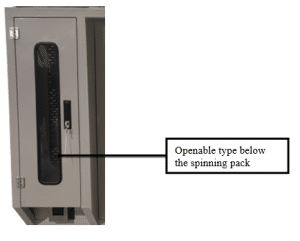

Hot wind channel

Hot wind heating method Nitrogen gas
Temperature control range RT~150℃
Air speed and volume Adjustable
With nitrogen inlet, protection gas can be passed in.

Spray and steering

  • With oil spray pump
  • Roller diameter: 100mm, main body material: SUS304
  • Can directly receive fiber, can also be turned guide roller
  • Fiber receiving speed: 2800r/min

Measurement and control part

  • Data monitoring and control: Using real-time monitoring of material temperature and plug-in wall temperature control method, material temperature control is more accurate.
  • PC remote control, interface display: extrusion speed, metering pump speed, winding speed, temperature display;
  • Over-limit alarm: overload alarm, temperature over limit alarm, extrusion pressure over limit alarm, metering pump abnormal speed alarm.

Application

Application of Pitch Twin Screw Melt Spinning Machine

Melt spinning machine refers to the machine use melt spinning method to produce synthetic fiber. DW7090F Twin Screw Melt Spinning Machine for pitch  is suitable for small batch production of carbon fiber or simulation teaching of complete production process.

Standards

Pitch Twin Screw Melt Spinning Machine standards

Key specification

Key specification of Pitch Twin Screw Melt Spinning Machine

Screw diameter φ30mm
Screw rotation speed 100~300r/min
Fiber receiving rotation speed 2800r/min
Temperature range RT~400℃
Power 35kw
Power supply AC220V, 50Hz
Package dimension 200*90*210cm (L*W*H)
