Random Tumble Pilling Tester FY227-II/FY227-IV

Rated 0 out of 5
(be the first to review)

Random Tumble Pilling Tester, also named Textile Random Tumble Pilling Machine, which is used to do pilling test for textile. The main purpose is to test the pilling resistance of textile, suitable for all kinds of clothing fabric.

Random Tumble Pilling Tester FY227-II/FY227-IV

Random Tumble Pilling Tester is to detect pilling performance of fabric. Put 105 mm x 105 mm samples respectively in a test box, under the effect of the rotation of the impeller, the content box cork continuous random friction lining wall, set the timer to set time, to set a time after the sound hold, tip end of the test. The test chamber will be injected with compressed air to enhance the turnover and air pressure.

FYI is a leading supplier and exporter of Random Tumble Pilling Machine which focus fabric testing.

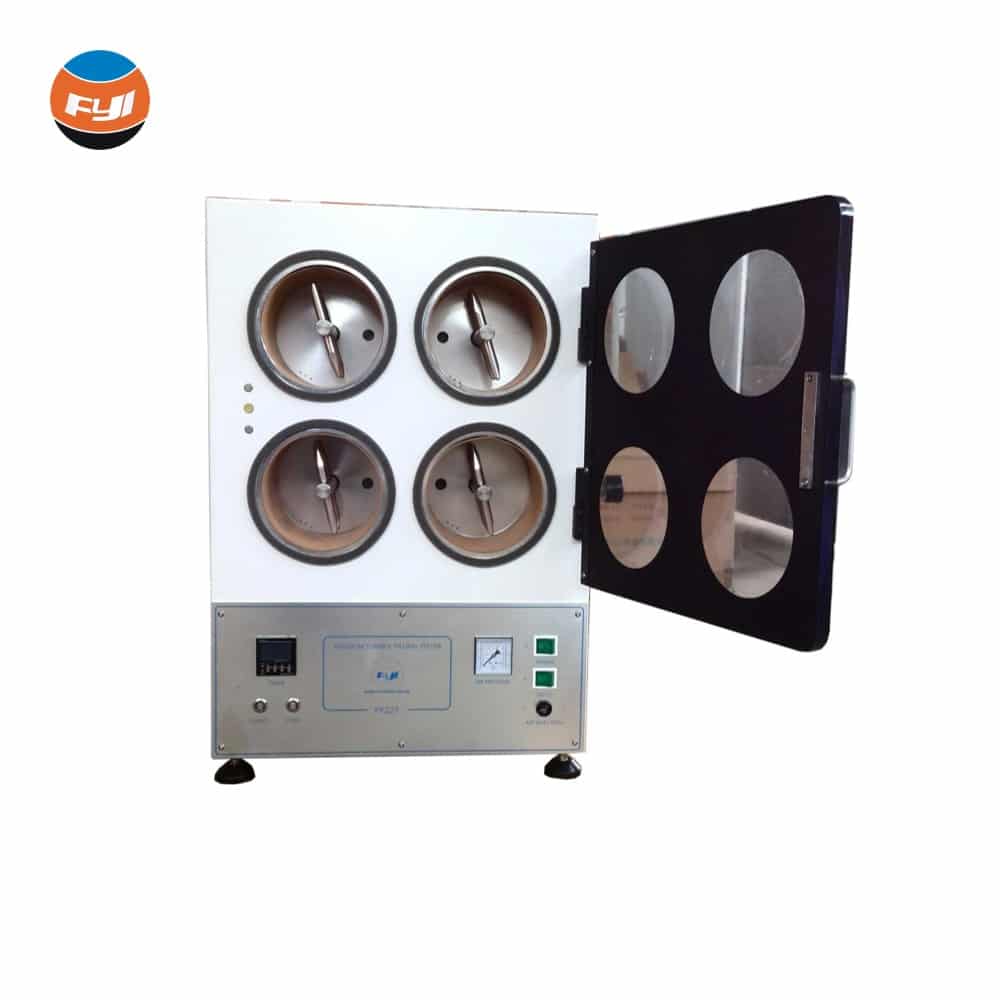

Random Tumble Pilling Tester is to determines the pilling and fuzzing characteristics of textile fabrics. Stainless steel impellers rotate within individually lit aluminum chambers constantly tumbling test fabrics against cork liners for a pre-determined time controlled by a timer and audible alarm. Compressed air is also injected into the chamber to assist in the tumbling action. With memory function when power interrupted, and can save the data when power interrupted;

Use the sample template to cut 3 samples (105×105mm) from the fabric to be tested. Whether cork liners are inserted rightly into the chamber, the end user should keep aligned. Put 3 samples into chambers, each chamber a sample. Add small amounts of short-length gray cotton fiber to each test chamber with the samples.

APPLICATION

Application of Random Tumble Pilling Tester

Random Tumble Pilling Tester is to imitate the frictional effect of wearing, the test sample and a small amount of grey short cotton fiber were added into the cylindrical test box and the cork Line , and the test results were compared with the standard photograph.

Random Tumble Pilling method can be used to judge the fabric on the ball and other surface defects. For example, the resistance capacity formed by hairiness is suitable for all kinds of clothing fabrics.

If you need more information about Random Tumble Pilling Tester. Please contact with us.

Standards

Random Tumble Pilling Tester Standard

ASTM D3512 DIN 53867 GB/T 4802.4 JIS L1076

Key specification

Key specification of Random Tumble Pilling Tester

Tumble diameter: 146mm
Tumble length: 152mm
Rotating speed: 1200rpm
Impeller blade length 121mm
Number of chambers 4
Timer range: 0- 99min 59s
Air pressure 14kPa~21kPa
Cork Liner dimension: 452×146×1.5mm (L×W×H)
Dimension: 470×430×720mm (L×W×H)
Power supply: 220V±10%, 50Hz,120W
Weight: 50kg
