Ultimate Bursting Strength Tester Guide 2025

Are you having trouble finding the right testing equipment to test how strong your materials are in your lab or quality control department?

Choosing the wrong testing machine can affect how accurate your material tests are and whether you meet industry standards.

In today’s tough manufacturing world, it’s very important for people in textiles, packaging, and material science to know about bursting strength testing equipment.

Bursting strength testing is a way to check quality that looks at how materials behave when pressure is applied from all sides until they break.

This testing method gives you valuable information about how materials work in real life, so you can make smart decisions about product specs and quality standards.

If you are in textile making, packaging development, or research centers, knowing about bursting strength testing equipment will help you get reliable and high-quality results.

This article will cover how bursting strength testers work, technical specs, different types of equipment, industry standards, and cost factors to help you make informed buying decisions.

What is Burst Strength?

Burst strength measures the maximum pressure a material can withstand before breaking when force comes from all directions simultaneously.

Unlike tensile tests that pull in one direction, burst testing applies multidirectional stress, better simulating real-world conditions.

Results are expressed in kilopascals (kPa), pounds per square inch (psi), or kilograms per square centimeter (kg/cm²).

This testing answers one crucial question: how much pressure can your material handle before failing?

It’s essential for packaging materials to protect products during shipping, textiles requiring flexibility without tearing, and medical supplies maintaining sterile integrity under various conditions.

Types of Bursting Strength Testers

Modern testing labs need advanced equipment to handle different material testing needs. Choosing the right testing equipment depends on what you need to test, what types of materials you work with, and how accurate your results need to be.

There are two main types of bursting strength testers that dominate the market today.

1. Pneumatic Bursting Strength Tester

It ensures accurate results and prevents damage. The YG032P is reliable, advanced, and easy to use. It helps industries check product quality with confidence and precision.

Key Features

• Non-contact laser ranging system for precise measurement accuracy that doesn’t touch your sample
• Transparent observation chamber with LED lighting, so you can watch the test happen
• Magnetic test head changing system for quick setup changes without tools
• Smart identification system that prevents wrong test setups
• Four available test methods: CRB, CTB, CP, and CE protocols for different standards
• Data storage capability for 20 groups with 20 samples each for batch testing

2. Digital Hydraulic Bursting Strength Tester

Unlike air, hydraulic fluid doesn’t compress much, so tests stay stable and results remain consistent. This gives repeatable, accurate, and trustworthy readings, making the YG032M a powerful choice for industries that need precise bursting strength testing.

Key Features

• Touch screen interface with easy-to-use operation controls
• High-accuracy laser measurement system with fast response times
• Pneumatic sample clamping with even force distribution across the sample
• Security design with automatic range monitoring and alerts
• Calibration kit included for height measurement verification
• Multiple test method compatibility for diverse applications

Working Principle and Testing Method

Understanding how digital bursting strength testers work helps you get the most accurate results and interpret your data correctly.

The basic operation is simple: apply controlled pressure to a clamped sample until it fails. This sounds easy, but getting reliable results requires attention to many details.

1. Testing Setup Process

Start by cutting your sample to the testing standard. Size and surface must be correct. Even small variations in preparation can affect results, so consistency is key.

The sample is placed between circular clamps that hold the edges and leave the center open for testing. Proper clamping stops the sample from slipping and spreads the stress evenly. If the sample slips or clamps unevenly, the test won’t show the real strength.

The tester uses a rubber diaphragm or metallic membrane that expands under pressure. This expansion applies stress in many directions, just like real-world use. Sample preparation matters a lot. Cutting, handling, and storing samples all affect results.

Conditions like temperature and humidity change material properties. That’s why standards often require samples to be conditioned in a controlled environment before testing.

The clamps must hold tight without damaging. Too much force stresses the material, and too little causes slipping. Good testers adjust the clamping force for accurate results every time.

2. Pressure Application Mechanism

Pressure is applied slowly and steadily until the sample breaks. The rate follows the standard, so tests are the same in all labs. Modern machines have feedback systems that control the rate precisely, regardless of the material type.

During the test, both pressure and deformation are monitored closely. Advanced equipment uses lasers to measure the distension without touching the sample, to prevent errors. This is crucial for delicate materials.

Pressure builds up steadily, just like in the real world. Usually it increases gradually, not suddenly. The speed depends on the material and the standard followed. Different materials react differently, so the correct procedure is important.

Digital systems record both pressure and deformation during the whole test. This shows how a material behaves before breaking. It shows stretching and changes, not just the final strength. Such data helps to check material quality and consistency.

3. Data Recording and Analysis

When the sample breaks, failure detection happens automatically. The machine records the peak pressure and how much the material stretched. This data helps to define the material strength and guide quality control and design work.

The data is then processed statistically to calculate averages, standard deviations, and variations. These numbers show how consistent a material is and allow you to compare it to standards or competitor products.

Most systems also create a graph of pressure vs deformation. This shows hidden details, like how much a material can stretch before breaking. Such behavior is suitable for flexible use applications. Systems also allow for storing and retrieving detailed test records.

This is useful for quality programs, regulations, or troubleshooting. Data can be exported to spreadsheets or software analysis.

Automatic recording reduces human errors and keeps all information. This is especially important when running many tests or different operators. It ensures results are reliable and comparable.

Performance and Technical Parameters

Technical specifications affect testing accuracy, reliability, and what materials you can test.

Understanding these parameters helps you choose the right equipment for your specific testing needs and lab capabilities.

Don’t get overwhelmed by technical specifications – focus on the ones that matter most for your applications.

1. Pressure Range

Pneumatic systems work between 0 and 6000 kPa, suitable for textiles, paper, and light packaging. Their resolution can be as fine as 0.1 kPa, enough for standard testing.

This range covers most lab needs. Hydraulic systems go up to 10,000 kPa or more, handling heavy materials like heavy packaging, industrial fabrics, and composites. A wider range allows deeper testing for different uses.

When choosing, consider the toughest materials you will test. Extra capacity is safer than limits, but high-pressure units cost more and may be unnecessary if you test lighter items. Accuracy matters as much as range.

Choose systems that are accurate at all levels, not just at maximum. Some lose accuracy at low pressures, which is a problem for varied materials.

Resolution shows the smallest change detected. Higher resolution gives more precise results and repeatable data, especially for materials with similar strength or when small differences matter.

2. Measurement Accuracy and Resolution

Modern testers have pressure accuracy within ±1% of full scale, matching global testing standards. Distension accuracy is usually ±0.02 mm, which is important for material study and quality control.

Temperature compensation keeps results stable under changing lab conditions, useful for labs without strict climate control. Accuracy shows how close values are to the true reading.

Higher accuracy means more reliable results, especially when sharing data with suppliers, customers, or agencies.

Repeatability shows if results are the same when testing one material multiple times. Good repeatability means reliable data, while poor repeatability may show equipment or testing issues.

Reproducibility shows if results match across operators and times. Good reproducibility means reliable results, no matter who runs the test or when it’s done.

3. Sample Testing Area Options

Testers have multiple head sizes to fit different samples and standards. Common sizes are 7.3 cm², 10 cm², 50 cm² and 100 cm².Having options allows you to meet different standards and material needs. Quick-change magnetic heads make switching fast and accurate.

Smart ID systems prevent mistakes in test head use. The test area affects how much of the material is tested. Larger areas average out differences and give a more balanced result for mixed materials. Smaller areas highlight local variations, useful for finding quality issues.

When choosing head sizes, think about the standards you follow and the materials you test most. Using the wrong size may give non-compliant or less accurate results.

Some materials behave differently in different test areas. This size effect is visible in fiber-based or uneven structures. Knowing this helps you interpret your test data correctly.

4. Data Management

Advanced storage systems save multiple test series and full tracking. Export options link to lab software and analysis tools, saving time and reducing errors.

Real-time data views show how samples react during testing, helping you detect problems early and avoid wasted tests. Modern units store thousands of results with full details, such as conditions, IDs, and operator notes.

This history is valuable for quality tracking, problem solving, and method validation. Automatic reports save time and ensure complete and consistent documents. Many reports are in standard formats required by industries or clients.

Network connections link testers to lab systems for seamless transfers, central storage, and remote monitoring. These features are more important as labs move to automation and data-driven work.

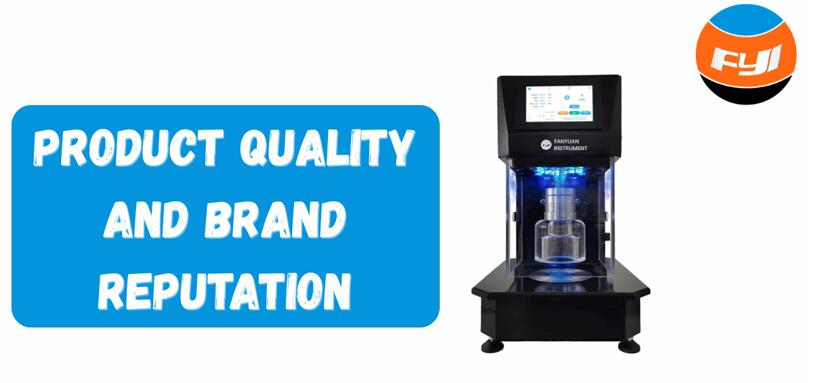

Product Quality and Brand Reputation

Equipment reliability and manufacturer reputation have a big impact on long-term testing accuracy and lab productivity. Evaluating these factors means you invest in equipment that performs consistently throughout its life.

1. Manufacturing Quality Standards

Top manufacturers like FYI have strong quality systems that cover design, production, and testing. ISO 9001 certification shows they focus on quality, and special testing certifications prove they meet industry standards.

Material choice and production methods affect durability and accuracy. Stainless steel resists rust and keeps its shape, precision parts ensure smooth operation and repeatable results.

Good manufacturing makes equipment easy to use, reliable, and consistent. Bad quality means frequent failures, bad results, and higher costs.

Choose companies that share their quality practices openly. Proud manufacturers explain their controls and testing methods clearly.

High-quality parts like sensors, valves, and components last longer and stay accurate. They may cost more upfront, but they reduce long-term costs and downtime.

2. Service and Support Infrastructure

Strong technical support includes setup help, operator training, and ongoing maintenance. Skilled technicians fix issues quickly, keep downtime low, and test on schedule.

Training teaches operators the right procedures, maintenance, and troubleshooting. Well-trained users get consistent results and keep equipment running longer.

Support quality often decides if your machine is reliable or frustrating. Choose manufacturers known for full support and strong customer care.

Fast response matters when equipment fails. Each day of downtime delays work and costs money. Good networks fix issues quickly, with no major disruption.

Training is important but often ignored. It helps users improve accuracy, avoid mistakes, and perform maintenance that prevents bigger problems.

3. Calibration and Validation Services

Calibration keeps measurements accurate and traceable to standards, ensuring valid and reliable results. Certificates prove accuracy and compliance with quality systems.

Validation proves the machine meets performance standards and works for its purpose. This includes tests that show the equipment is fit for use.

Calibration is not optional. It ensures results remain correct and acceptable for compliance or contracts.

Good calibration services include detailed reports, which are important for audits and inspections. Always check that suppliers meet your industry’s standards.

Some suppliers offer on-site calibration, others need you to send equipment in. On-site saves time but may cost more. Choose the option that fits your needs and budget.

4. Warranty and Long-term Support

A good warranty protects your investment and helps during startup. Extended warranties give extra peace of mind for busy labs or critical uses.

Parts and long-term support keep machines running as technology changes. Upgrade options let you add new features without full replacement.

A good warranty shows the company’s commitment and protects against early problems. But terms vary, so read the fine print.

Long-term parts support is important for equipment used for many years. Some companies stop making parts and force early replacement. Choose companies with proven long-term service.

Check the upgrade policy too. Since technology evolves, upgrade paths help you stay current, improve tools, and protect your investment.

Industry Testing Standards Compliance

Compliance with established testing standards ensures measurement validity and enables meaningful comparison of test results across different labs and organizations.

Understanding applicable standards helps you select appropriate testing procedures and equipment configurations.

Standards exist for good reasons – they ensure that test results are reliable, comparable, and meaningful.

1. International Standards Organization (ISO) Requirements

ISO 2960 sets testing methods for textiles, including sample preparation, testing conditions, and result calculation. Following this ensures results are trusted worldwide and supports global trade. It is widely used in the textile industry.

ISO 2758 sets burst strength testing rules for paper and board, giving consistent evaluations across manufacturers and labs. The paper and packaging industries depend on it for quality checks.

ISO standards are agreed upon globally and reflect best practices. Following them ensures your results are accepted by international customers or suppliers.

These rules cover test performance, sample preparation, environmental conditions, and reporting. Following them ensures results are comparable worldwide.

ISO standards are updated to match new technologies. Always use the latest version and check that your equipment can follow updated procedures.

2. American Society for Testing and Materials (ASTM) Standards

ASTM D3786 gives detailed methods for textile burst strength testing, covering equipment needs, sample prep, and procedures. It is the main reference in North America.

ASTM F1140 covers medical packaging, setting rules for sterile packaging materials. Following it ensures materials meet medical device requirements.

ASTM standards matter in North American markets and for companies using US-based specifications. They are written by experts and reflect best practices.

Many customer and regulatory requirements mention ASTM standards, so compliance is vital for testing labs. Ensure equipment and methods meet them.

ASTM standards also include precision rules, showing how repeatable and reproducible results should be. These help check if your equipment works correctly.

3. Technical Association of the Pulp and Paper Industry (TAPPI) Standards

TAPPI T403 sets burst strength testing rules for paper and board, giving standard methods for packaging material evaluation. It covers both lab testing and quality control.

Testing equipment often supports multiple standards, letting labs test to different rules without changing equipment. This is useful for labs working across industries.

TAPPI standards are made for the paper and packaging industry and address specific challenges in these fields. They are highly accepted globally.

These rules cover issues like moisture, grain direction, and production processes. Knowing these factors makes results more accurate and meaningful.

4. Compliance Verification and Documentation

Modern equipment has features for compliance and documentation. Automated systems record test data and create reports that follow standard formats.

Audit trails record test steps, operator actions, and changes, creating detailed records for quality systems and regulations. Documentation proves compliance.

Compliance also means proving you followed rules. Good systems keep the records needed for audits, customer requests, and inspections.

Modern systems can check procedures against selected standards and highlight errors, helping avoid non-compliant results.

Regularly checking compliance keeps testing accurate over time. Reviewing procedures and records helps catch and fix issues early.

Price, Cost-effectiveness, and Maintenance Requirements

Investing in a bursting strength machine requires evaluating total ownership costs, including purchase price, maintenance costs, and operational costs throughout the equipment’s life.

1. Initial Investment Considerations

Pneumatic bursting strength testers are cheaper at the start compared to hydraulic ones, good for labs with a small budget or fewer tests. But their pressure range is limited, so it is not suitable for all materials.

Always think long-term before buying. Hydraulic systems cost more upfront but perform better and have wider testing ability. Worth it for labs that test many materials or high-pressure testing.

When checking costs, see what’s included. Some brands include training, setup, and calibration in the price; others charge extra. Compare the total package, not just the machine.

Financing or leasing options can reduce the burden of high costs, making big equipment affordable for small labs. These programs let you start without paying a big sum at once.

Also, think about how the new tester can save or make money. Better accuracy, faster results or the ability to test new materials can justify higher costs through productivity gains or new business.

2. Operational Cost Analysis

Pneumatic systems need compressed air, and hydraulic ones need power for pumps. Actual running cost depends on local utility prices and how often you test.

Supplies like calibration tools, fixtures, and replacement parts are ongoing costs. Good makers give full details so you can plan better. These expenses can add up, so keep them in your budget.

Labor is often the biggest cost in labs. Machines that cut testing time, need less operator effort, or record data automatically, and save money by reducing labor costs.

Sample costs also matter, especially with expensive materials or long prep time. Equipment that uses smaller samples or tests more at once can reduce these costs.

Utility costs are not just electricity. Heating, cooling, and airflow for labs also affect bills. Energy-saving machines cut these costs over time.

3. Maintenance Requirements and Costs

Preventive maintenance keeps machines running smoothly and avoids sudden failures. It includes checking calibration, oiling parts, and replacing worn-out pieces as advised by the maker.

Service agreements with professionals ensure expert care and original parts. They usually cost less than one-time service calls and make budgeting easier. Not doing maintenance will backfire and result in failures, wrong results, or a shorter life of the machine. Regular care always saves money in the long run.

Some tasks can be done by lab staff, others need skilled service. Knowing the difference helps in planning time and budget better.

Parts cost and availability also matter. Brands with good support reduce downtime and maintenance costs in the long run.

4. Return on Investment Calculation

New equipment can pay for itself by cutting testing time, giving better results, and improving lab work. Automatic features also save operator time and increase the accuracy.

Better testing reduces the chance of product issues, warranty costs, and unhappy customers. These gains give good returns and justify the investment.

Payback period is the full cost vs yearly savings or added income. If equipment pays for itself fast, it’s usually a good buy. Very long payback periods may not be worth it.

Not all returns are measurable. Benefits like happy clients, a better image, and an edge over competitors also matter. These add to the true value of the equipment.

Think of the risks of not having good machines. Lost clients, poor quality, or rules not being met can cost more than buying the right tester.

5. Lifecycle Cost Optimization

Don’t just look at the price. Equipment with a higher upfront cost may save more overall by lasting longer, needing fewer repairs, and being more reliable.

Some testers can be upgraded instead of replaced. This extends their use and adds new features over time, giving more value for your first purchase.

Plan ahead for replacement. Check how long the machine will be useful and if tech updates will affect its value. Strong resale value or upgrade path gives better returns.

Add the cost of training, calibration, and keeping up with standards. Machines that make these jobs easier save money in the long run.

Finally, check the maker’s stability and reputation. Good brands ensure parts and service will be available for the life of your machine.

Conclusion

Bursting strength testing represents a fundamental quality assurance methodology that enables accurate material characterization across textiles, packaging, and medical device industries.

The selection between pneumatic and hydraulic testing systems depends on your specific requirements, with pneumatic systems offering cost-effective solutions for routine applications and hydraulic systems providing enhanced capabilities for high-pressure testing needs.

Investment in quality equipment from reputable manufacturers ensures measurement reliability, compliance with industry standards, and access to comprehensive technical support.

Future technology developments will focus on automation enhancements and improved data management capabilities that continue advancing testing efficiency while maintaining required accuracy levels.

For expert guidance on selecting the right bursting strength tester for your laboratory needs, contact FYI Tester today.

Frequently Asked Questions

Q: What is the difference between pneumatic and hydraulic bursting strength testers?

Pneumatic testers use compressed air and typically handle pressures up to 6000 kPa, making them cost-effective for routine textile and packaging testing. Hydraulic systems use liquid pressure, can reach 10,000+ kPa, and offer superior precision for high-strength materials and research applications.

Q: How often should bursting strength testers be calibrated?

Most manufacturers recommend calibration verification every 6-12 months, depending on usage frequency and testing requirements. High-volume laboratories or critical applications may require more frequent calibration to maintain measurement accuracy and compliance with quality standards.

Q: Which testing standards apply to bursting strength testing?

Key standards include ISO 2960 for textiles, ASTM D3786 for fabric testing, ASTM F1140 for medical packaging, and TAPPI T403 for paper and paperboard materials. Your choice depends on your industry, material type, and target markets.

Q: What factors should I consider when selecting a bursting strength tester?

Consider your maximum pressure requirements, material types, testing volume, budget constraints, and applicable standards. Also, evaluate manufacturer reputation, technical support availability, calibration services, and long-term maintenance costs for total ownership considerations.

Contact Us

Phone: +86-551-68 105003
Phone: +86-551-68 105008
Fax : +86-551-6523 2507
Email: [email protected]
Email: [email protected]
