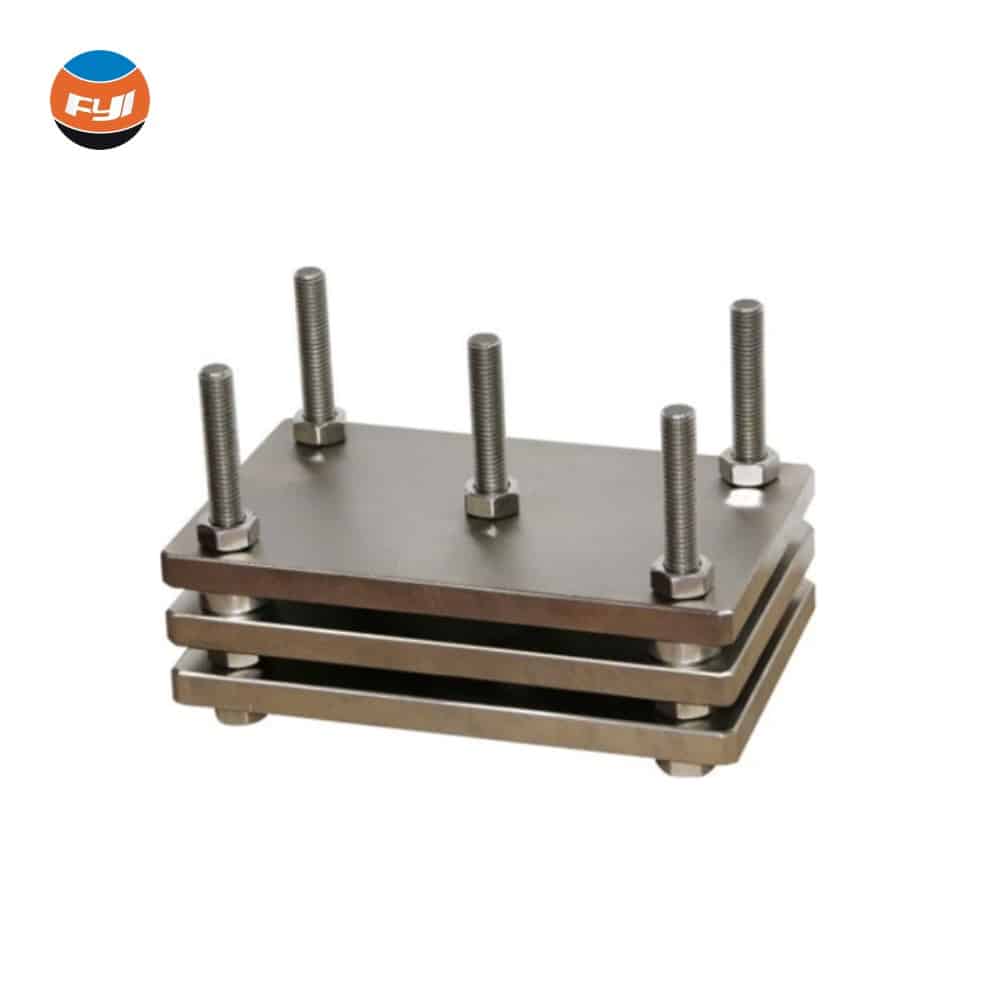

ISO 815 Compression Set Test Fixture DW5774

Rated 0 out of 5
(be the first to review)

Compression Set Test Fixture which also named Compression and Deformation Tester or Rubber Compression Set Test Fixture. Compression Set Test Fixture is Static compression test .Please use standard specimens and clip on this flat plates, screw rotation, narrowed to a certain ratio, then put in a certain temperature in the oven, after of the specimens taken out, remove the specimen, cooling for 30 minutes.

ISO 815 Compression Set Test Fixture DW5774

Compression Set Test Fixture can test the resilience of elastic materials after heating and compression for a period of time.

Test principle: take standard specimens, clip on this flat plates, screw rotation, narrowed to a certain ratio, then put in a certain temperature in the oven (available separately), after the prescribed time, remove the specimen, cooling for 30 minutes, measuring its thickness, substitution formula for compression slanting degrees.

Sample request: foamed plastic 50 x 50 * 25mm.

Results: the thickness of the test is measured and the formula is used to obtain the compression skew.

We provide reasonable price and high quality Compression Set Test Fixture ,Follows are features of the tester

  • All materials are 304 stainless steel.
  • Design is very simple .
  • It can be customized according to customer requirements.

related products : Rubber testing machine

Application

Application of Compression Set Test Fixture

Compression Set Test Fixture is used to determine the compression set characteristics of vulcanized and thermoplastic rubbers.

Itcan test the resilience of elastic materials after heating and compression for a period of time. This product can test the resilience of elastic materials after heating and compression for a period of time.

  1. Hardness: ASTM: 45, 46 ~ 65,65 ~ 85,85.
  2. JIS: 40, 41 ~ 60,61 ~ 80,81.
  3. Compression ratio: 40%, 30%, 25%, 20%.
  4. Spacing ring thickness: 7.62mm, 8.89mm, 9.52mm, 10.16m (standard accessories: including 2 sets of interval rings

Compression Set Test Fixture complies with GB/T 7759, ISO 815 etc international and retailer standards.

If you need more information about Compression Set Test Fixture Machine. Please contact with us.

Standards

Compression Set Test Fixture standards

GB/T 7759 ISO  815



Some standards might not be the full version; to read the full version for free, write an email to [email protected].
Please contact the administrator to get any violations removed.

Key specification

Key specification of Compression Set Test Fixture

Compression 40%, 30%, 25%, 20%
Spacer 7.62mm, 8.89mm, 9.52mm, 10.16mm
Hardness: ASTM: 45, 46 ~ 65,65 ~ 85,85.
Dimension 20×12×10cm
Gross weight 11kg
