How Much Compressed Air Does an Air Jet Spinning Machine Use? Factors, Pressure, and Energy Efficiency
An air jet spinning machine uses compressed air to form yarn, making airflow demand a key factor in energy costs and spinning stability. How much compressed air does an air jet spinning machine use? Consumption depends on the machine model, active spinning positions, nozzle design, and operating pressure. To estimate demand accurately, check the manufacturer’s specifications and measure airflow under actual operating conditions.
1. How Much Compressed Air Does an Air Jet Spinning Machine Use?
Understand Airflow Rate and Total Consumption
How many spinning positions are used and the operating conditions for your machine will determine the amount of compressed air used. Read the manufacturer’s specifications to see if the airflow is for the whole machine, one spinning position, or a given machine operating set-up.
Air consumption is expressed in liters per minute (L/min), cubic meters per minute (m³/min) or normalized cubic meters per hour (Nm³/h). Normalized values are based on the reference conditions set and should be checked before comparing data between manufacturers.
Understand air consumption vs compressor size. Air consumption is the amount of air the machine will require; compressor capacity is the amount of air the compressor can deliver under specific conditions. When the compressor is used to feed other equipment, estimate the demand of the other equipment.
Estimate Total Air Demand
For the total airflow, multiply the measured airflow for each spinning position by the number of positions. This calculation assumes that the same amount of air is being used at each position, under the same operating conditions.
Due to machine setup, ancillary pneumatic elements, operating conditions, and air leakage, the actual demand may vary. Initially plan for the estimate, then measure consumption during the operation.
2. Factors Affecting Compressed Air Consumption
Machine Design and Nozzle Configuration
How compressed air is delivered to the spinning elements and the amount of air required by each spinning element is dependent on the pneumatic design of the machine. Total consumption is affected by nozzle geometry, internal flow passages, control valves, and the number of positions used for spinning.
When comparing machines, be sure that the published airflow is for the same machine setup and operating parameters. The specification of one spinning position cannot be directly compared to the total demand of a complete machine without taking into consideration the number of positions and other air-consuming parts.

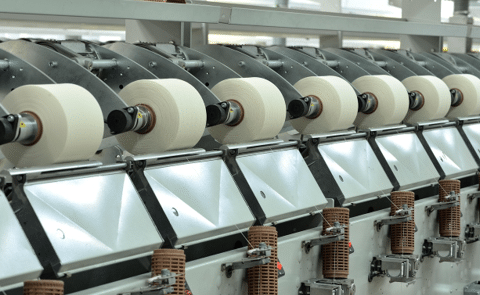

Yarn Count, Fiber Properties, and Production Speed
The operating conditions required to ensure consistent yarn quality depend on the yarn specification and production targets. Selected spinning parameters and air consumption can be influenced by various factors such as yarn count, fiber composition, fiber length, delivery speed, and nozzle setting.
It is not to be taken for granted, however, that a certain yarn count will always need more compressed air. It is dependent on the machine design and process parameters. For various yarn constructions, record the airflow per unit in addition to the yarn count, fiber properties, speed of production, and pertinent machine settings. This will help to determine if a variation in air demand is due to a variation in yarn specification or operating condition.
Operating Pressure and Equipment Condition
In some nozzles and restrictions, the operating pressure will influence the flow by increasing the air flow, and in others, it will have the opposite effect. Other factors that can have an impact on air demand or the pressure available at the machine inlet could include leaks, hose damage, valve leakage, and clogged filters.
If higher supply pressure is needed for stable machine operation, examine the distribution system first; don’t adjust the compressor output! If there is an excessive loss of pressure, this can result from undersized piping, constricted filters, or poor maintenance of components. Problems can be addressed to enhance air delivery without an unnecessary increase in system pressure.
Operating Schedule and Machine Utilization
Average consumption varies with the number of spinning positions active in your machine and its run time. Start-up, full production, idle, and shutdown could require different airflow requirements.
One “snapshot” measurement may not reflect the entire shift. Keep records of production hours, active positions, and machine settings during representative operating periods while measuring airflow. These records can be used to tell the difference between normal process demand and air used during idle times, or unexpected air loss.
3. Relationship Between Air Pressure and Air Consumption
There is a relation between air pressure and air consumption, but the two are not the same. Pressure (bar or psi) is a measure of the amount of force available to operate pneumatic equipment, and air consumption is a measure of how much compressed air is needed over time, typically L/min, m³/min, or CFM.
For equipment that requires running or repeated cycles of compression and flow of air, operating pressure may increase the amount of air used. The relationship will, however, depend on the design of the machine, the size of the nozzle, the leakage of the machine, and the cycle of operation. When determining compressor size, check the working pressure as well as the air consumption of the compressor equipment at the working pressure.
4. How to Reduce Compressed Air Consumption

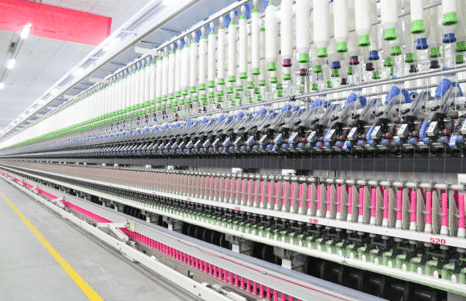

Measure Your Baseline Consumption
The higher the nozzle pressure, the more air will be consumed, but this will depend on whether nozzle geometry, pressures before and after the nozzle, temperature, and flow conditions affect the consumption. Choked flow is such that mass flow through a fixed restriction is mostly a function of the upstream absolute pressure and temperature.
The pressure at the compressor could be higher than the pressure at the spinning machine due to resistance from pipes, filters, regulators, and fittings. During production, take pressure measurements at the machine inlet. Before attempting to increase compressor pressure, check to see if it has dropped under load by checking the supply capacity and distribution system.
Keep pressure to achieve good quality yarn.
Monitor Consumption Against Production Output
Adhere to the manufacturer’s recommended pressure range. Adjust the test under static conditions and observe the airflow; observe evenness, strength, and hairiness of yarn. Only reduce pressure when results indicate that the yarn quality and stability of production are within the requirements.
Measure the consumption of compressed air under normal conditions of production before changing the operating parameters. Document airflow, inlet pressure, position of the spinning where the yarn was working, yarn specifications, and production speed.

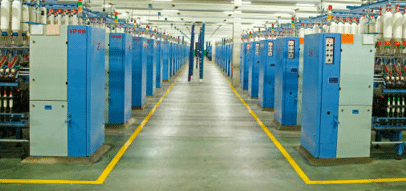

Detect and Repair Air Leaks
Check hose/fittings, seals, valves, and pneumatic connections for leaks. Pressure loss due to leakage of compressed air, even if it is a small leak, will result in continuous loss of compressed air, even if the machine is not in operation.
Repair leaks, and repeat airflow measurements at similar conditions. If consumption continues to be high, inspect for excessive air discharge or valves that don’t close. Regularly check for leaks as part of maintenance.
Optimize Pressure and Air Distribution
Have their Air Distribution and Pressure optimized.
Compare regulator settings with manufacturer’s specifications. Before raising the compressor pressure in order to restore inlet pressure during production, check the filters, pipes, fittings, and valves for restrictions.
Follow filter and air-treatment maintenance procedure. Make sure that the system supplying the airflow is adequate and results in minimal restriction of airflow. The objective is to keep the pressure at the machine at the specified pressure, rather than to try to achieve the highest possible pressure in the compressor.
Monitor Consumption Against Production Output
Check the quality of the yarn and production following pressure adjustment, repair of leaks or modification of pneumatic controls. Simply decreasing the airflow does not increase efficiency if it increases end breaks, decreases yarn consistency or slows production. The compressed-air requirements for the laboratory air jet spinning system are discussed in this section.
5. Compressed Air Requirements for Laboratory Air Jet Spinning
Verify the Machine’s Air Supply Specifications
If you are considering buying an air jet spinning machine for research or quality testing, you need to verify its inlet pressure, airflow, air quality, and connections prior to installation. Do not take the figures of consumption from the industrial machines and estimate for the laboratory, because the consumption depends upon the machine capacity, nozzle configuration, and auxiliary pneumatic functions.

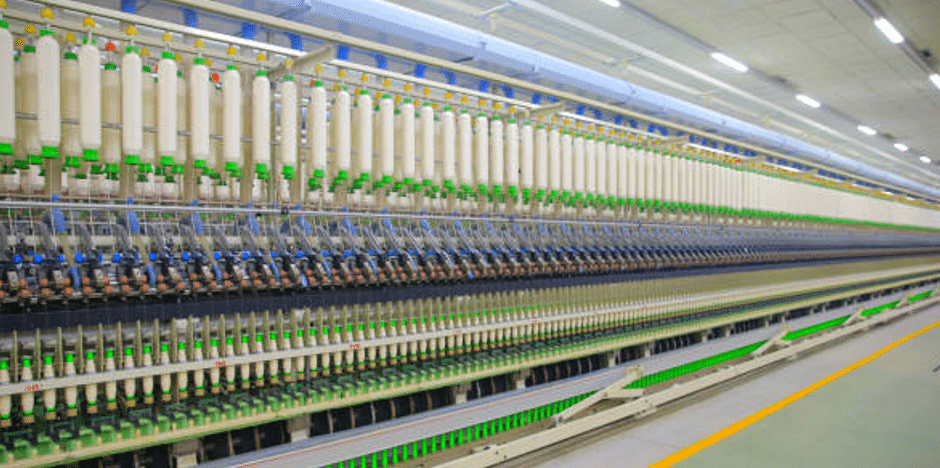

Choose the right size of Air Supply for Stable Operation
The air supply should be able to provide the required pressure and provide adequate flow during testing. Capacity of the compressor, volume of the receiver tank, and air available at the inlet of the machine are different factors. A receiver tank can accommodate some short-term demands and variations, but can’t operate without the compressor being sized appropriately for an extended period of time.
Consider changes in pressure due to other equipment and connecting pipes. Verify filtration/drying requirements. When multiple laboratory instruments have the same supply, determine the total demand of the instruments before choosing a compressor.
For each test, note the inlet pressure, airflow, yarn count, fiber content, production speed, and machine settings. If ambient temperature and humidity could potentially influence the results, also record these.
When the conditions of the supply are consistent, you can determine whether changes are due to the experimental variables or due to the operation of the machine. There is also a precedent for repeatable tests, comparisons with other research sessions, and research into odd variations in yarn quality and other findings.
Conclusion
Efficient compressed-air management starts with understanding your machine’s airflow requirements, operating pressure, and production conditions. Measure actual consumption, repair leaks, optimize pressure, and monitor air use alongside yarn quality and output. For laboratory applications, verify supply requirements before installation.
