Understanding The Melt Flow Index Tester

Understanding the Melt Flow Index Tester

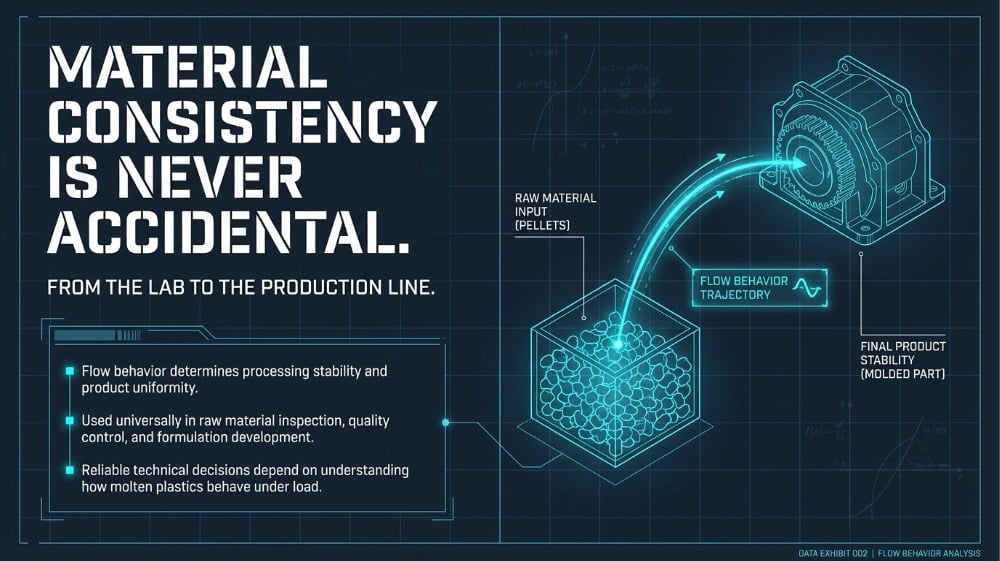

In polymer science and industrial manufacturing, material consistency is never accidental. Whether you are working in a university laboratory, a polymer research institute, a textile fiber production line, or an industrial quality control department, the flow behavior of molten plastics directly affects processing stability, product uniformity, and long-term performance.

One of the most widely used and standardized tools for evaluating this behavior is the melt flow index tester. Through a controlled mfi test, this instrument measures how a thermoplastic polymer flows when subjected to a specific temperature and load. The resulting value—commonly reported as grams per 10 minutes—serves as a fast and practical indicator of melt viscosity and molecular structure.

Despite its apparent simplicity, melt flow index testing plays a foundational role across the plastics, textile, and polymer processing industries. It is used daily for raw material inspection, batch-to-batch quality control, academic research, and formulation development. Understanding how a melt flow testing machine works, what its results truly represent, and how to interpret those results correctly is essential if you want to make reliable technical and commercial decisions.

This article provides a comprehensive and professional overview of melt flow index testers. You will explore the scientific meaning of MFI, the working principle of the equipment, the relationship between MFI and molecular structure, and the standardized testing procedures that ensure global data comparability. Later sections (Part 2) will address industrial applications, textile and fiber processing requirements, quality control strategies, equipment selection, cost-effectiveness, and long-term maintenance.

What Is the Melt Flow Index (MFI) and Why It Matters

The Melt Flow Index (MFI), also referred to as Melt Flow Rate (MFR), is a quantitative measurement of how much molten thermoplastic polymer flows through a standardized capillary die under specified conditions of temperature and load within a defined time period—typically 10 minutes.

In practical terms, MFI answers a simple but powerful question:

How easily does a polymer melt flow under pressure?

The result is usually expressed in grams per 10 minutes (g/10 min) and is obtained under strictly controlled test conditions defined by international standards.

What an MFI Value Represents in Practice

When you analyze MFI data, several general interpretations apply:

  • A higher MFI value indicates lower melt viscosity and easier flow.
  • A lower MFI value indicates higher melt viscosity and greater resistance to flow.

This makes MFI an extremely useful screening parameter. It does not describe every aspect of polymer behavior, but it provides rapid insight into how a material is likely to behave during processing operations such as extrusion, injection molding, blow molding, or fiber spinning.

For quality control personnel, MFI is often the first parameter checked when incoming raw materials arrive. For researchers and university faculty, it is a baseline measurement used to compare formulations or study the effects of additives and processing history.

Relationship Between MFI, Molecular Weight, and Mechanical Properties

One of the reasons MFI is so widely adopted is its strong relationship with polymer molecular structure—particularly molecular weight.

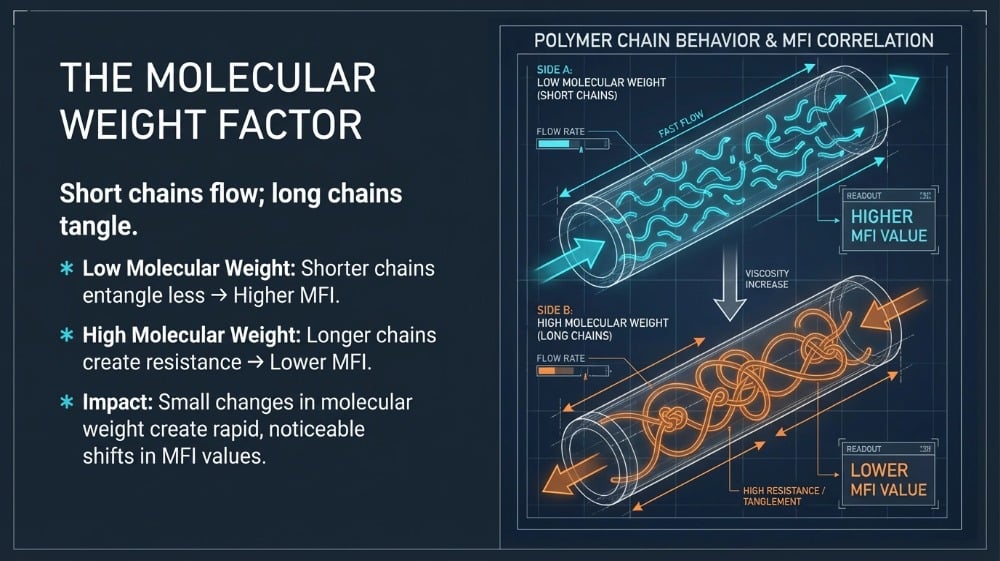

Average Molecular Weight and Melt Viscosity

In general:

  • Polymers with lower average molecular weight tend to exhibit higher MFI values. Shorter polymer chains entangle less, allowing the melt to flow more freely.
  • Polymers with higher average molecular weightusually show lower MFI values, as longer chains create greater entanglement and resistance to flow.

This relationship is not linear, but empirical studies show that melt viscosity increases rapidly with molecular weight. As a result, small changes in molecular weight can produce noticeable changes in MFI.

Impact on Mechanical Performance

From a practical standpoint, molecular weight affects not only flow behavior but also mechanical properties:

  • High MFI materials
    • Easier to process
    • Lower processing pressure
    • Often lower tensile strength, stiffness, and impact resistance
  • Low MFI materials
    • Higher melt strength
    • Better mechanical durability
    • Greater resistance to creep and deformation
    • More demanding processing conditions

This trade-off explains why MFI is frequently used as a compromise parameter: it helps balance processability against final product performance.

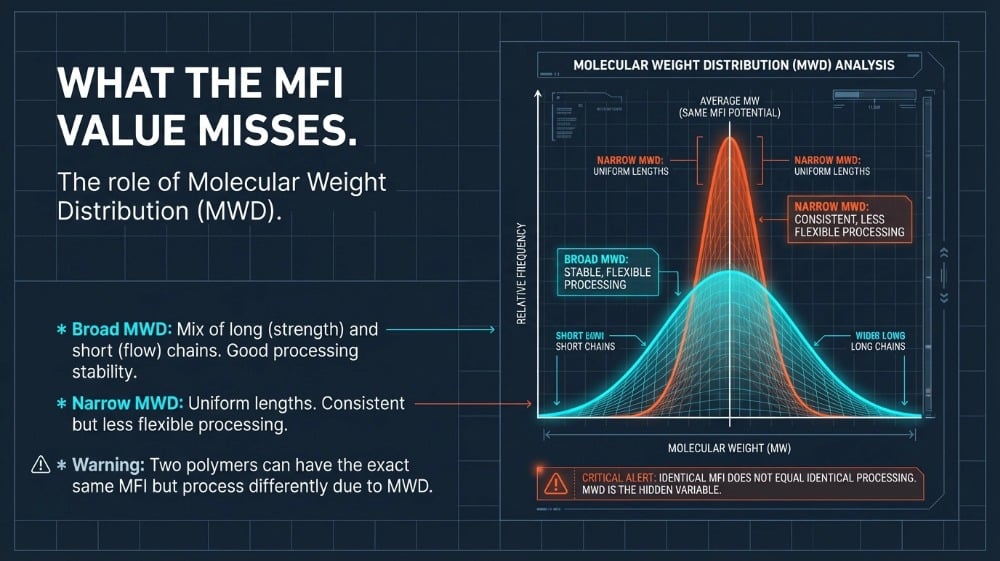

Molecular Weight Distribution (MWD) and What MFI Cannot Fully Show

While average molecular weight strongly influences MFI, it is not the only factor. Molecular Weight Distribution (MWD)—the spread of polymer chain lengths within a material—also plays a critical role.

Broad vs. Narrow MWD

  • A broad MWDcontains both long and short polymer chains.
    • Long chains contribute to strength and melt elasticity.
    • Short chains improve flow and processing stability.
  • A narrow MWD features more uniform chain lengths, often resulting in predictable and consistent behavior, but sometimes reduced processing flexibility.

Two polymers can share the same MFI value yet behave very differently during processing due to differences in MWD. This is one reason why MFI should be interpreted as a screening tool, not a complete rheological description.

Detecting Material Changes Through MFI

Changes in MFI over time can signal:

  • Thermal degradation during processing
  • Chain scission during recycling
  • Moisture-induced degradation in hygroscopic polymers
  • Inconsistent polymerization or compounding

For quality control teams, trending MFI data is often more valuable than a single measurement. A gradual shift in MFI may indicate a developing problem long before visible defects appear in finished products.

The Melt Flow Index Tester: Structure and Core Components

A melt flow index tester, sometimes called a melt flow index machine or extrusion plastometer, is designed to perform MFI testing under precisely controlled and standardized conditions.

Although designs range from basic manual units to highly automated systems, all melt flow testers share the same fundamental structure.

Main Components of a Melt Flow Index Testing Machine

  1. Heated Barrel
    A cylindrical chamber that melts the polymer sample at a precisely controlled temperature. Uniform heat distribution is essential to avoid viscosity gradients within the melt.
  2. Piston Assembly
    A precision-machined piston fits inside the barrel and applies vertical force to the molten polymer. Low friction and dimensional accuracy are critical for consistent results.
  3. Load System (Weights)
    Standardized weights generate the pressure required to force the melt through the die. Different polymers require different load conditions.
  4. Capillary Die (Orifice)
    A narrow, standardized opening at the base of the barrel through which the polymer is extruded. Die dimensions are tightly specified by international standards.
  5. Temperature Control System
    Typically a PID-controlled heating system that maintains stable test temperature with minimal fluctuation.
  6. Timing and Measurement System
    Used to measure extrusion rate either by mass collection or piston displacement.
  7. Cutting Mechanism
    Manual or automatic systems used to separate extrudate at precise time intervals during mass-based testing.

Working Principle of the Melt Flow Index Tester

Despite variations in design and automation level, the working principle of all melt flow index testers is fundamentally the same.

Step-by-Step MFI Testing Procedure

  1. Sample Preparation and Loading
    You load a specified amount of polymer—typically pellets or granules—into the preheated barrel. For moisture-sensitive polymers such as nylon or PET, proper drying is essential before testing.
  2. Melting and Preheating
    The sample is allowed to melt and reach thermal equilibrium for a defined preheating period. This step ensures consistent starting conditions.
  3. Application of Load
    Standard weights are placed on the piston, applying constant pressure to the molten polymer.
  4. Extrusion Through the Die
    The polymer flows downward through the capillary die, forming a continuous strand.
  5. Measurement of Flow Rate
    1. Mass-based method (MFR): The extrudate is cut at fixed time intervals and weighed.
    1. Volume-based method (MVR): Piston displacement is measured electronically to calculate flow rate.
  6. Result Calculation
    The measured mass or volume is converted into a standardized flow rate, typically reported per 10 minutes.

This controlled extrusion process ensures that results are repeatable and comparable when testing conditions are strictly followed.

Standardized Testing Methods: Why Consistency Matters

Melt flow testing is governed by international standards to ensure that results from different laboratories, industries, and regions can be compared meaningfully.

The two most widely used standards are:

  • ASTM D1238 (commonly used in North America)
  • ISO 1133 (widely adopted internationally)

Both standards define:

  • Test temperatures and loads for different polymers
  • Equipment dimensions and tolerances
  • Timing, measurement, and reporting procedures

Without strict adherence to these standards, MFI values lose their technical relevance.

A detailed explanation of standard-compliant testing principles can be found here:
https://fyitester.com/what-is-melt-flow-index-tester-how-does-melt-flow-index-tester-work/

ASTM D1238 vs. ISO 1133: Why the Testing Standard You Use Matters

When you report an MFI value, the number itself is only meaningful if the testing standard is clearly specified. In professional environments—especially quality audits, supplier qualification, and academic publications—confusion between ASTM and ISO methods can lead to incorrect conclusions.

ASTM D1238

ASTM D1238 is the most widely referenced melt flow testing standard in North America. It defines:

  • Apparatus dimensions and tolerances
  • Standardized temperatures and loads for different polymers
  • Multiple procedures, including:
    • Procedure A: mass-based measurement (MFR)
    • Procedure B: volume-based measurement (MVR)
    • Additional procedures for high-flow materials and multi-load testing

ASTM places strong emphasis on fixed timing sequences and piston position requirements, which improves repeatability across laboratories.

ISO 1133

ISO 1133 is the internationally harmonized equivalent, commonly used in Europe and Asia. While technically similar to ASTM D1238, it introduces flexibility for materials sensitive to time-temperature history and moisture.

ISO 1133 is divided into:

  • ISO 1133-1: standard mass and volume flow testing
  • ISO 1133-2: stricter requirements for moisture-sensitive or degradation-prone polymers

Why You Must Specify the Standard

If you compare MFI values measured under different standards, even small procedural differences—such as preheating time, piston travel distance, or timing start point—can produce measurable discrepancies.

For quality control and supplier communication, you should always:

  • Specify the standard (ASTM or ISO)
  • Specify temperature and load conditions
  • Ensure consistent procedures across testing sites

FYI melt flow index testers are designed to comply with both ASTM D1238 and ISO 1133, allowing you to operate confidently in global testing environments.

Implementing Melt Flow Index Testing in a Quality Control System

In industrial environments, MFI testing is most powerful when embedded into a structured quality control (QC) frameworkrather than treated as an isolated measurement.

Establishing Acceptable MFI Ranges

The first step is defining acceptable MFI limits for each material:

  • Use supplier technical data sheets as a baseline
  • Correlate historical MFI data with successful production runs
  • Adjust ranges based on process sensitivity and end-use requirements

These limits should reflect not only material specifications but also real processing performance.

Sampling and Test Frequency

Effective QC programs use statistically valid sampling strategies:

  • Incoming raw materials: random sampling from each batch
  • In-process monitoring: periodic testing during long production runs
  • Finished products (when applicable): verification of material stability

Consistency in sample preparation, drying conditions, and test execution is essential.

Handling Out-of-Spec Results

When an MFI result falls outside specification, a structured response helps prevent costly errors:

  1. Laboratory Verification
    1. Check instrument calibration
    1. Repeat the test under identical conditions
    1. Verify sample preparation and drying
  2. Material Investigation
    1. Test additional samples from the same batch
    1. Review supplier production data if available
  3. Disposition Decision
    1. Reject material
    1. Blend with other batches
    1. Adjust processing parameters where acceptable

Documenting each step ensures traceability and supports continuous improvement.

Matching MFI to Manufacturing Processes

Different polymer processing methods impose very different flow and melt strength requirements. Understanding how MFI affects each process helps you select the right material and avoid production defects.

Injection Molding

Injection molding generally favors higher MFI materials, as low viscosity improves mold filling.

  • Typical MFI range: medium to high (depending on part geometry)
  • Benefits:
    • Better flow into thin sections
    • Reduced injection pressure
  • Risks:
    • Too high MFI may cause flash, sink marks, or reduced mechanical strength

Blow Molding

Blow molding requires low MFI materials with high melt strength.

  • Typical MFI range: low
  • Benefits:
    • Stable parison formation
    • Uniform wall thickness
  • Risks:
    • High MFI may lead to sagging or parison collapse

Extrusion

Extrusion processes demand a balance between flow and melt strength.

  • Low to intermediate MFI values are commonly used
  • Excessively low MFI increases energy consumption and equipment stress
  • Excessively high MFI reduces dimensional stability

Textile Fiber Spinning

In fiber and filament production, MFI directly affects spinnability:

  • Too high MFI:
    • Low melt strength
    • Frequent filament breakage
  • Too low MFI:
    • High extrusion pressure
    • Melt fracture and unstable flow

Different textile applications require carefully controlled MFI ranges depending on polymer type and spinning method.

Limitations of MFI and Why It Still Matters

Despite its widespread use, MFI testing has inherent limitations.

What MFI Cannot Capture

  • Shear-rate dependence of viscosity
  • Elastic behavior of polymer melts
  • Complex flow conditions found in real processing equipment

Two polymers with identical MFI values may behave very differently during high-shear or extensional flow.

Why MFI Remains Indispensable

Even with these limitations, MFI remains essential because it is:

  • Fast and economical
  • Highly standardized
  • Easy to integrate into routine QC
  • Strongly correlated with processing performance

For advanced material characterization, MFI testing is often combined with capillary or rotational rheometry. However, for daily decision-making, MFI remains the most practical first-line test.

Selecting the Right Melt Flow Index Tester

When choosing a melt flow index machine, you should consider not only specifications but also how the equipment fits your workflow.

Manual vs. Automated Systems

  • Manual testers
    • Suitable for low-volume testing
    • Lower initial cost
    • Higher operator dependence
  • Automated testers
    • Improved repeatability
    • Reduced labor
    • Higher throughput

FYI Melt Flow Tester Positioning

FYI offers solutions tailored to different needs:

Both models are designed to meet international testing standards while balancing performance and cost-effectiveness.

Cost-Effectiveness and Maintenance Considerations

Evaluating Total Value

Rather than focusing solely on purchase price, consider:

  • Expected test volume
  • Labor savings from automation
  • Reliability and service support
  • Long-term stability of results

A durable, well-supported melt flow index tester often delivers better value over its service life.

Routine Maintenance Requirements

Proper maintenance is straightforward and essential:

  • Clean barrel, piston, and die after each test
  • Periodically verify temperature accuracy
  • Inspect mechanical components for wear

With proper care, a melt flow tester can operate reliably for many years with minimal downtime.

Conclusion

The melt flow index tester remains a cornerstone of polymer testing across research institutions, textile manufacturing, and industrial quality control. By providing a fast, standardized measure of melt flow behavior, it bridges the gap between molecular structure and real-world processing performance.

While MFI is not a complete rheological description, its simplicity, repeatability, and strong correlation with processing behavior make it indispensable. When combined with proper standards compliance, disciplined quality control practices, and thoughtfully selected equipment, melt flow index testing delivers reliable data that supports material selection, process optimization, and product consistency.

For laboratories and manufacturers seeking dependable performance without unnecessary complexity, modern melt flow testers—such as those offered by FYI—continue to provide a practical and trusted solution for polymer flow characterization in an increasingly demanding materials landscape.
