How Spinning Settings Affect Yarn Evenness

Drafting ratio is the amount of the fiber strand being drawn out before the process of yarn formation. A suitable drafting ratio can help to achieve a uniform fiber distribution and stable yarn weight to enhance the uniformity of the fiber. When the ratio is too high, irregularities in the drafts can be magnified, thus increasing the CV%, the U%, and the number of thin and thick places. If it is too low, the fibers could be insufficiently controlled, also reducing the uniformity of the yarn. Thus, an optimal drafting ratio should be used for uniform yarn quality, based on fiber length, fineness, yarn count, and spinning system.

Effect of Drafting Ratio on Yarn Evenness

The drafting ratio is used to adjust the attenuation of the fiber and the degree to which it is attenuated before insertion of the twist. The appropriate ratio ensures even alignment and distribution of fibres, thus keeping yarns even in mass. If the drafting ratio is correctly matched to the fiber and yarn specifications, it can help minimise yarn thickness variations and enhance yarn evenness.

The higher the ratio the more sensitive the process is to the variation of fiber length, floating fibers, and formation of drafting waves and the higher the ratio the higher the CV%, thin places and thick places. But if the drafting is not sufficient, it may lead to poor fiber control and fiber distribution. Thus, it is necessary to optimise the drafting ratio according to the fibre length, fineness, yarn count and spinning system, and test the effect of this ratio in the yarn evenness test. Read more: Filament Evenness Tester SPIN5900.

Influence of Twist Level on Yarn Uniformity

The twist level will have an impact on the firmness of the fibres together and the uniformity of the yarn structure. A twist level that is appropriate will enhance fiber-to-fiber cohesion, help to stabilize the yarn structure and may help to minimize surface irregularities. The twist requirements will vary based on fiber type, yarn count, spinning system and application.

If the twist added is too low, it may lead to decreased control of fiber, increased hairiness, and increased irregularity of the yarn, and if it is too high, it may lead to unnecessary stiffness and may have a negative impact on the performance of the yarn. Hence, it is not advisable to increase the twist, but to optimize it and check its effect with the help of U%, CV%, imperfections, and hairiness measurement by an evenness tester.

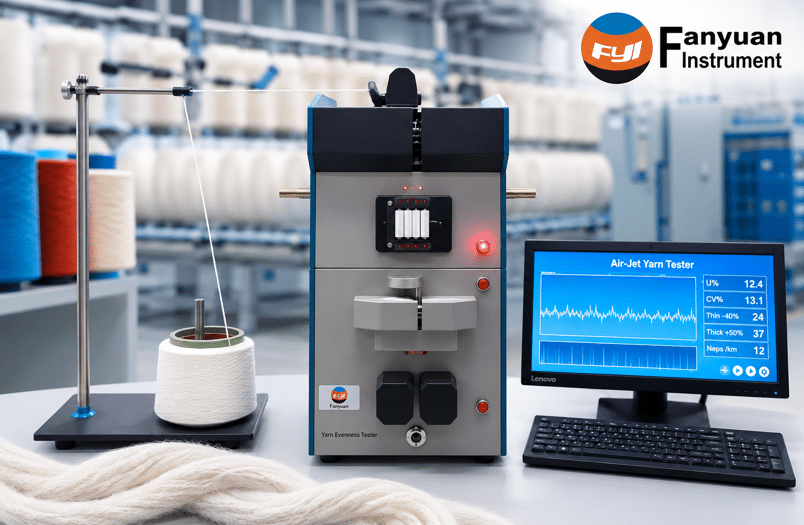

Relationship Between Spinning Speed and Yarn Unevenness

What Is Yarn Unevenness?

The unevenness in a yarn is when the mass of yarn, thickness of yarn or linear density of yarn changes from one part of the yarn to another. Yarn should be uniform, but it can be thick and thin places due to variations in fiber distribution, drafting, twist, and spinning conditions. Parameters that are generally used to assess yarn unevenness are U% and CVm%. Zeiten is often used as an index of yarn unevenness. The parameters commonly used to evaluate yarn unevenness are U%, CVm%, and Zeiten, which is often used as an index of yarn unevenness.

What is the spinning speed?

Spinning speed is the rapidity with which the spinning element, such as the spindle, spins during the spinning operation, typically given in revolutions per minute (r.p.m.). It is the factor that governs the speed of fibre spinning and spinning into yarn. The increased spinning speed can also lead to a higher production rate, but may also have an impact on the tension of the yarn, fiber control, centrifugal forces, and stability of the spinning process.

Effect of Higher Spinning Speed on Yarn Unevenness

When spinning, the speed of spinning yarn affects yarn unevenness as it influences the tension and movement of the fibres during the formation of the yarn. There is good control of the fibres at the suitable operating speed and the twisting process is stable, which facilitates to get yarns of consistent mass and structure. As the speed approaches high speed, however, fibre arrangement will increase instability and increase mass variation due to increased yarn tension, centrifugal force, vibration and fibre instability. Check our Yarn Evenness Tester SPIN5600/SPIN5600H.

Optimum Spinning Speed for Better Yarn Evenness

The relationship is thus not just based on the lowest spinning speed but rather on finding an optimum spinning speed. Unevenness can also rise if the machine is run outside of its recommended speed window, leading to higher values of U% and CVm% and more thick and thin places. Remain at the suggested spinning rate for the fiber type, yarn count, machine setup and twist to achieve efficient production without compromising uniformity of yarns.

Effect of Spinning Speed on Yarn Unevenness

Spinning Speed	Fiber and Yarn Behavior	Effect on Yarn Unevenness	Expected Test Result
Low speed	Lower yarn tension and more stable fiber control	May provide good uniformity, but productivity is reduced	Generally stable U% and CVm%
Moderate/optimum speed	Balanced fiber control, tension, and twisting	Lowest or controlled unevenness	Better U% and CVm%
High speed	Increased tension, centrifugal forces, and fiber movement	Unevenness may increase if the speed exceeds the optimum range	Higher U% and CVm%
Excessively high speed	Greater vibration, tension fluctuations, and unstable fiber control	Significant increase in thick and thin places	Poorer evenness and more imperfections

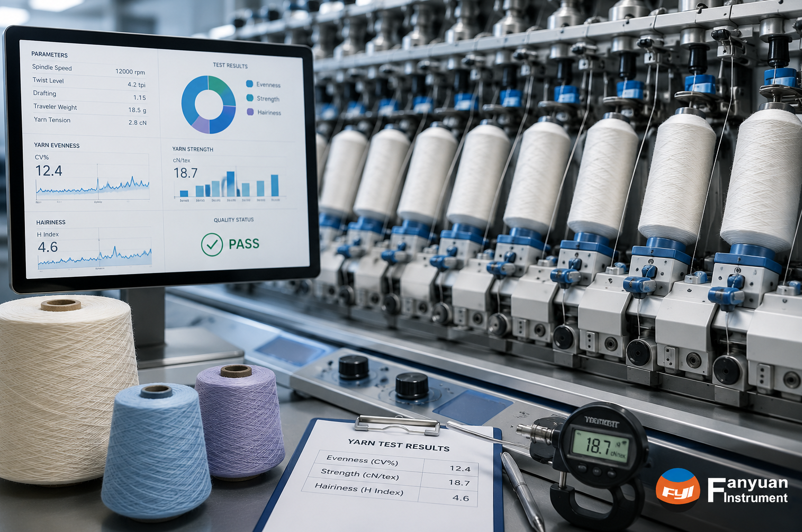

How Spinning Machine Settings Affect Yarn Test Results

Various operating conditions of the spinning machine affect the physical structure and quality of the yarn. The consistency of drafting, aligning and twisting fibers depends on various factors such as spinning speed, drafting ratio, twist level, roller setting, and fiber tension. The effects of these settings, even when small, will significantly change the mass distribution, yarn strength, yarn elongation and surface characteristics, and thus the result of yarn testing.

Effect of Spinning Speed on Yarn Test Results

The spinning speed influences fiber control, yarn tension and the stability of the yarn formation. An excessively high speed can cause more tension and vibration which will lead to yarn unevenness and more imperfections. This can lead to increased U% and CVm% and variations in yarn strength. The optimum spinning speed ensures stable spinning conditions and consistent test results.

Effect of Drafting Settings on Yarn Uniformity

Attenuation and Distribution of fibers prior to twisting is controlled by the Drafting settings. An inappropriate drafting ratio or roller combination may result in the irregular movement of the fibers, which in turn causes variations in the mass and thickness of the yarn. Yarn tests consequently may reveal a higher percentage of unevenness, imperfections and hairiness. Drafting preparations ensure more even yarns and fibre direction, which is important.

Effect of Twist Level on Yarn Strength

Twist is the degree to which fibres are held together in a yarn. Generally, with an increase in twist within a suitable range, fiber cohesion increases and may also increase tenacity, but when twist is increased too much, it will cause a decrease in strength and change the elongation. Thus, different twist settings can result in significant differences in yarn strength, elongation, and automatic evenness test results.

Effect of Roller and Spindle Settings

Fiber control during the spinning zone is affected by the roller pressure, roller spacing, spindle speed, and mechanical alignment. Improper settings can lead to drafting waves, slippage and/or unstable yarn tension. Some of these issues can manifest in the testing as ripples, thick and thin spots, neps, hairiness, or changes in tensile properties.

Effect of Machine Settings on Overall Yarn Quality

The results of Yarn Tests must be read in conjunction with the machine setting during the production. Several properties can be affected by a change in one parameter. Stable U%, CVm%, strength, elongation, hairiness and imperfection can be obtained with suitable ranges of spinning speed, drafting conditions, twist and roller setting and machine alignment.

Conclusion

The evenness of yarns is influenced by the product of fiber properties, the drafting ratio, the level of twist, the spinning speed, and machine settings. With control of these factors within acceptable limits, the amount of variation in mass, the imperfection, and the uniformity of yarn quality and tests could be minimized.

Improve Yarn Quality With FYI Tester

Accurate yarn testing helps you identify how spinning speed, drafting, twist, and other machine settings affect yarn evenness and overall quality. Explore FYI Tester for professional textile testing solutions and equipment designed to support reliable yarn quality evaluation. Contact us for further information!
